Components [10/2014 - 10/2015]: Illustration

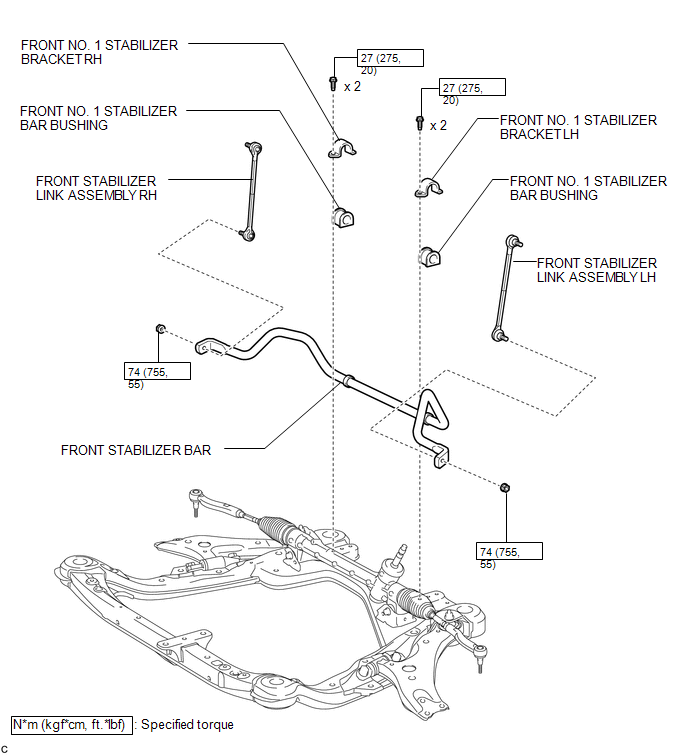

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

GTY362485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
