Components [10/2015 - ]: Illustration

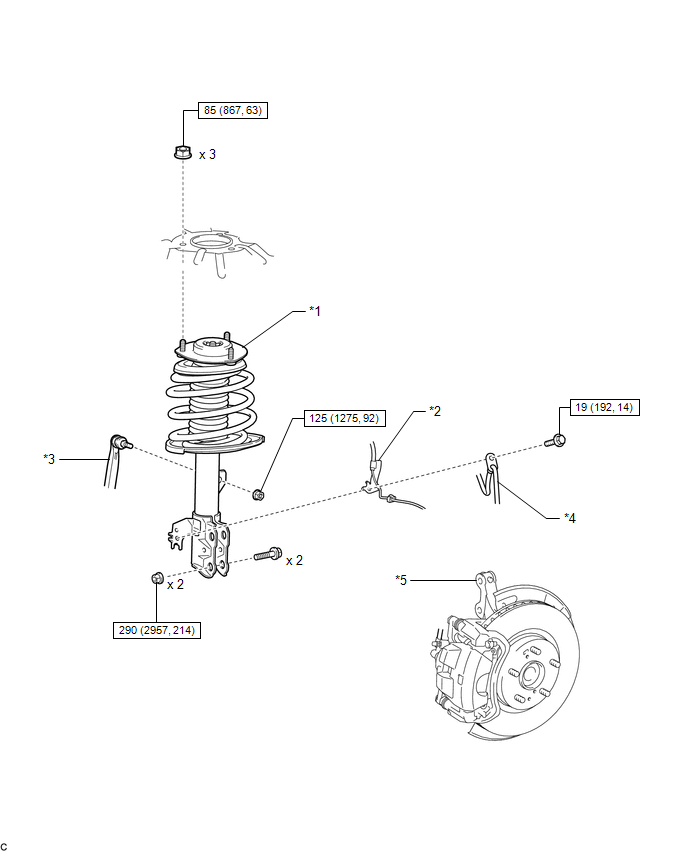

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
GTY558234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SHOCK ABSORBER WITH COIL SPRING *2 FRONT SPEED SENSOR
*3 FRONT STABILIZER LINK ASSEMBLY *4 FRONT FLEXIBLE HOSE
*5 STEERING KNUCKLE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

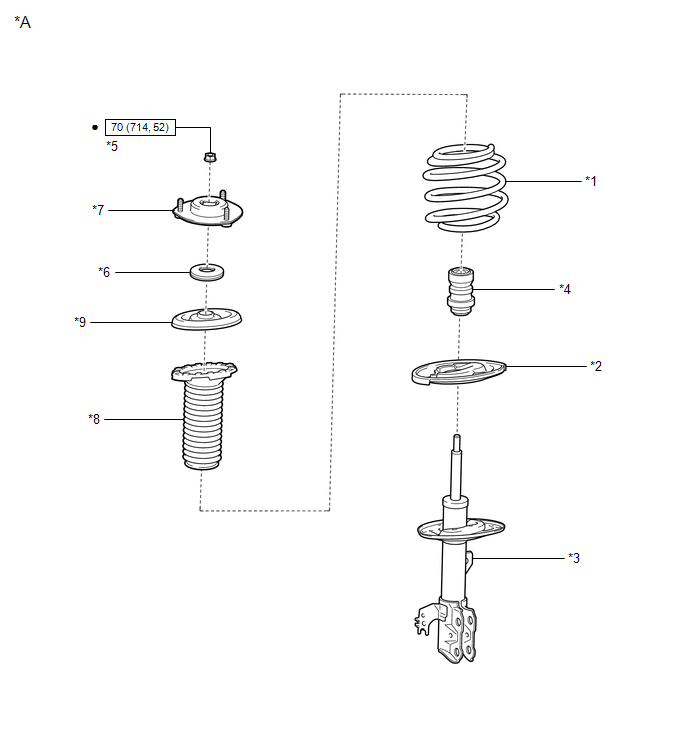

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)
GTY564116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Shock Absorber Type A - -
*1 FRONT COIL SPRING *2 FRONT LOWER COIL SPRING INSULATOR
*3 FRONT SHOCK ABSORBER ASSEMBLY *4 FRONT SPRING BUMPER
*5 FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT *6 FRONT SUSPENSION SUPPORT BEARING
*7 FRONT SUSPENSION SUPPORT SUB-ASSEMBLY *8 FRONT UPPER COIL SPRING INSULATOR
*9 FRONT UPPER COIL SPRING SEAT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

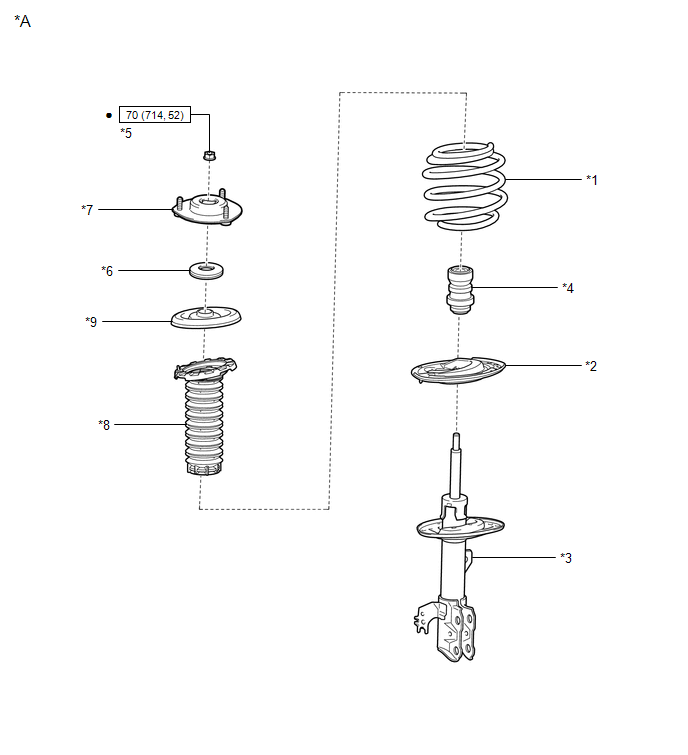

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
GTY584461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Shock Absorber Type B - -
*1 FRONT COIL SPRING *2 FRONT LOWER COIL SPRING INSULATOR
*3 FRONT SHOCK ABSORBER ASSEMBLY *4 FRONT SPRING BUMPER
*5 FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT *6 FRONT SUSPENSION SUPPORT BEARING
*7 FRONT SUSPENSION SUPPORT SUB-ASSEMBLY *8 FRONT UPPER COIL SPRING INSULATOR
*9 FRONT UPPER COIL SPRING SEAT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
