Components [10/2014 - ]: Illustration

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (1 Of 5)
GTY590141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

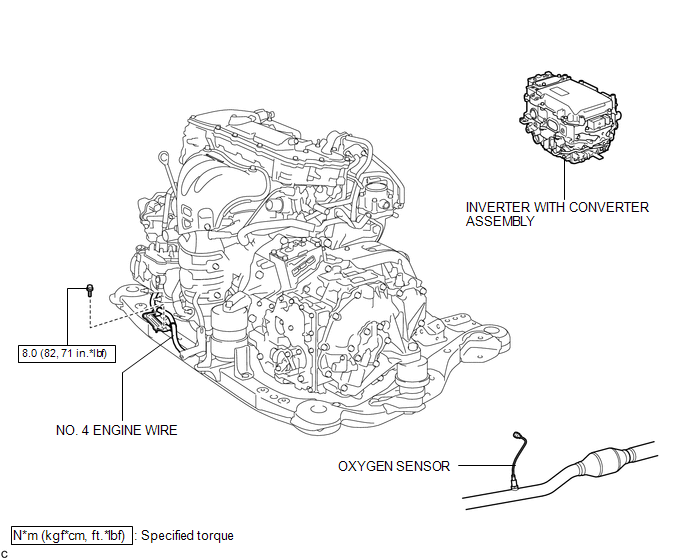

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (2 Of 5)
GTY314974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

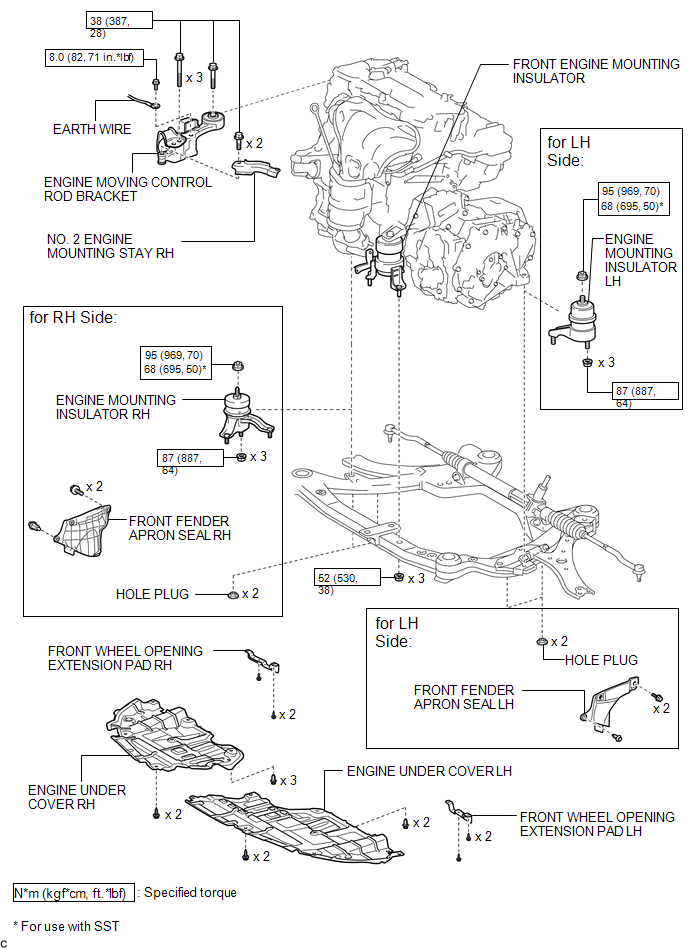

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (3 Of 5)
GTY583688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

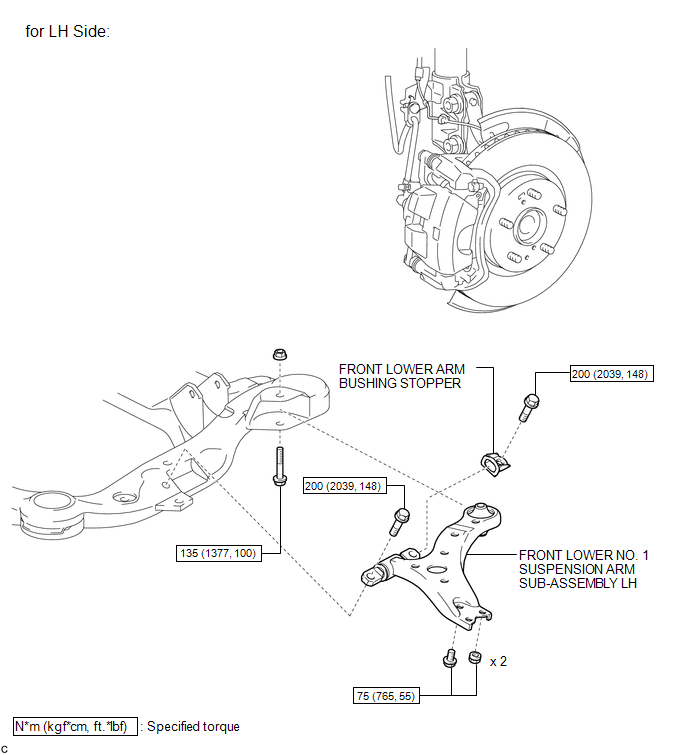

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (4 Of 5)
GTY479879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

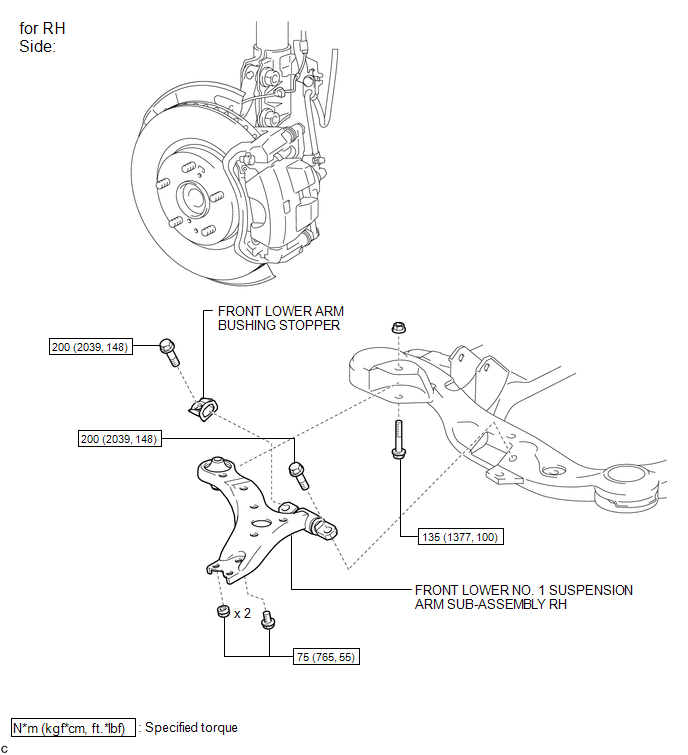

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (5 Of 5)
GTY474147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
