Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

1. Secure the front axle assembly in a vise using aluminum plates.
   NOTE:

   Do not overtighten the vise.

2. Remove the cotter pin and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install SST to the front lower ball joint assembly as shown in the illustration.
   • SST: 09960-20010
     1. 09961-02050
     2. 09961-02050

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

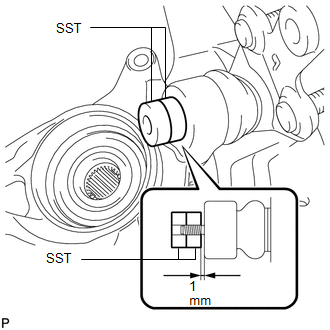

   NOTE:

   Check that the clearance measurement between SST and the front axle assembly is 1 mm (0.0394 in.).

4. Using SST, remove the front lower ball joint assembly from the front axle assembly as shown in the illustration.
   • SST: 09960-20010
     1. 09961-02010
     2. 09961-02050
     3. 09961-02050

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

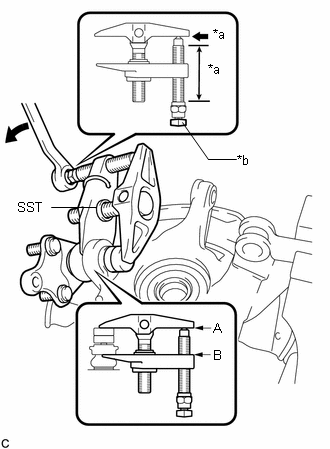

   TEXT IN ILLUSTRATION



   *a	Molybdenum Grease Application Area
   *b	Place wrench here

   WARNING:

   Apply molybdenum grease to the threads and end of the SST bolt.

   NOTE:

   • Install SST so that A and B are parallel.
   • Be sure to place a wrench on the part indicated in the illustration.
   • Do not damage the front lower ball joint dust cover.
   • Do not damage the front disc brake dust cover.
   • Do not damage the steering knuckle.
