Components [10/2014 - ]: Illustration

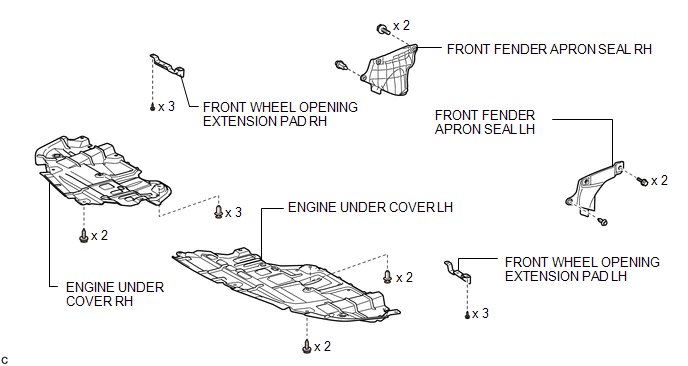

GTY557485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (1 Of 6)

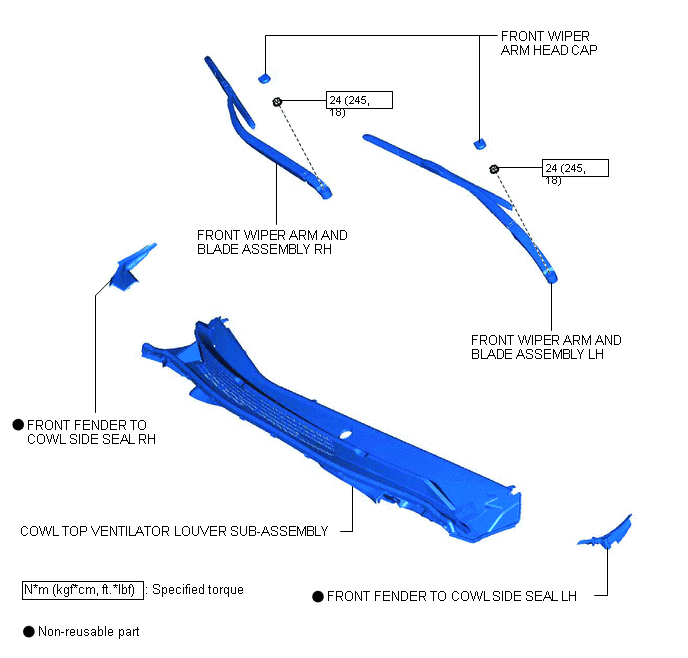

GTY550190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (2 Of 6)

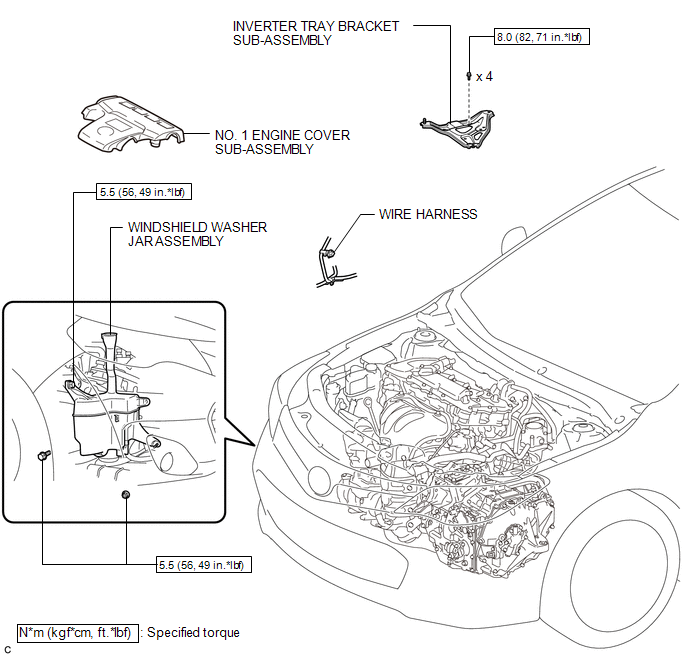

GTY478892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (3 Of 6)

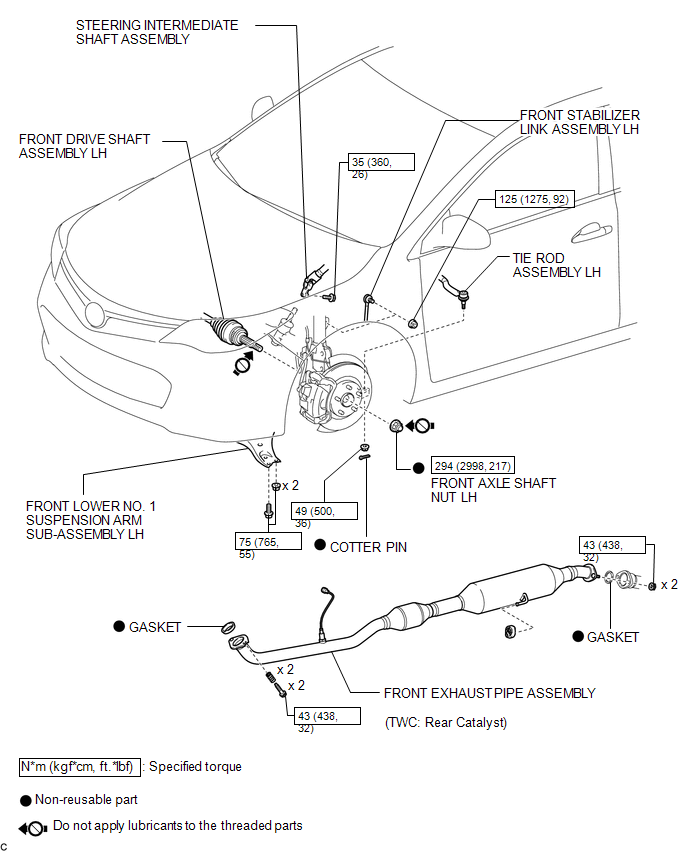

GTY593388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (4 Of 6)

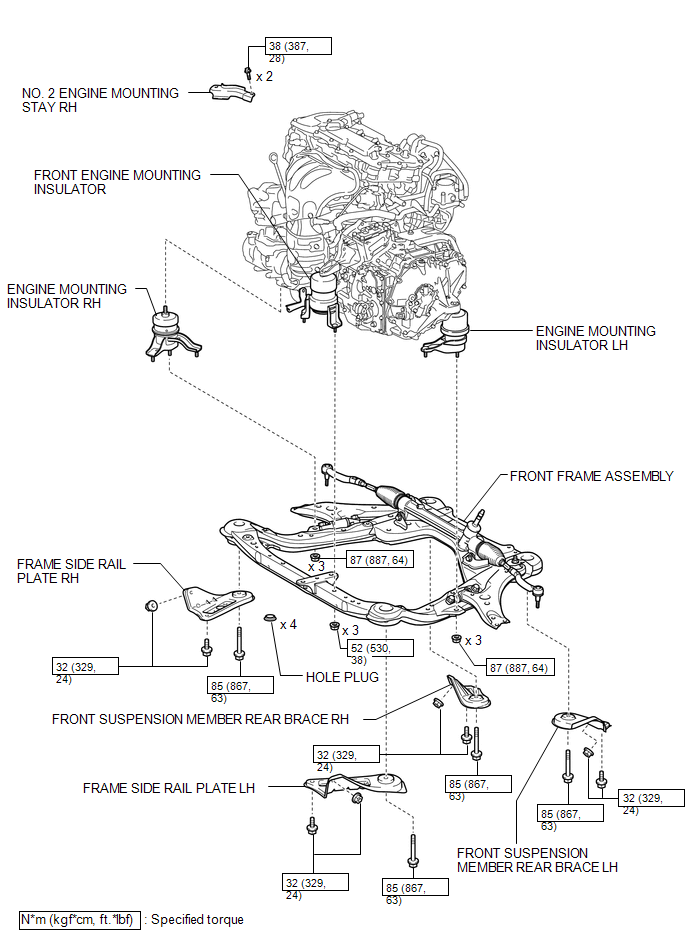

GTY585488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (5 Of 6)

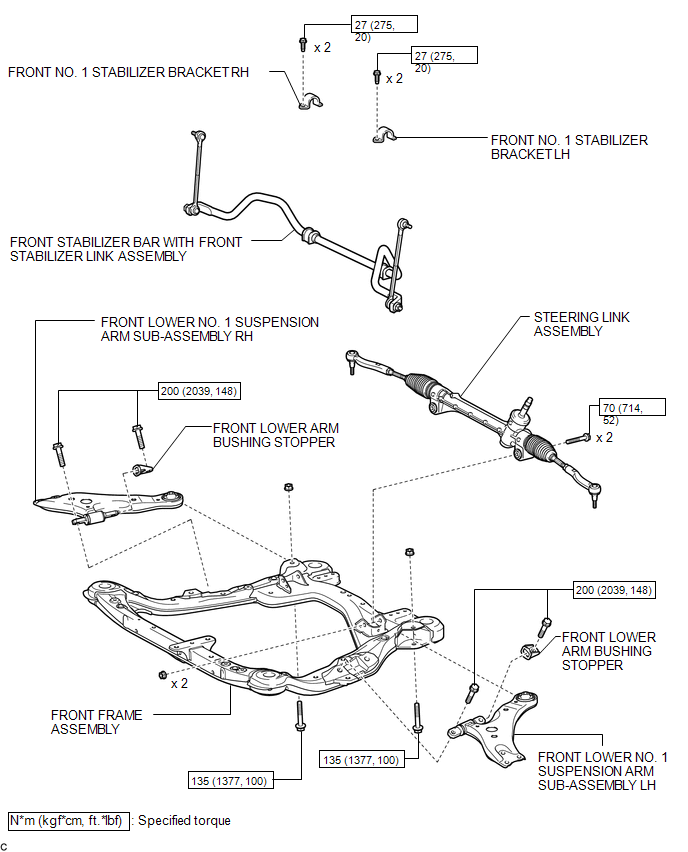

GTY538838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/ Support Bridge) (6 Of 6)

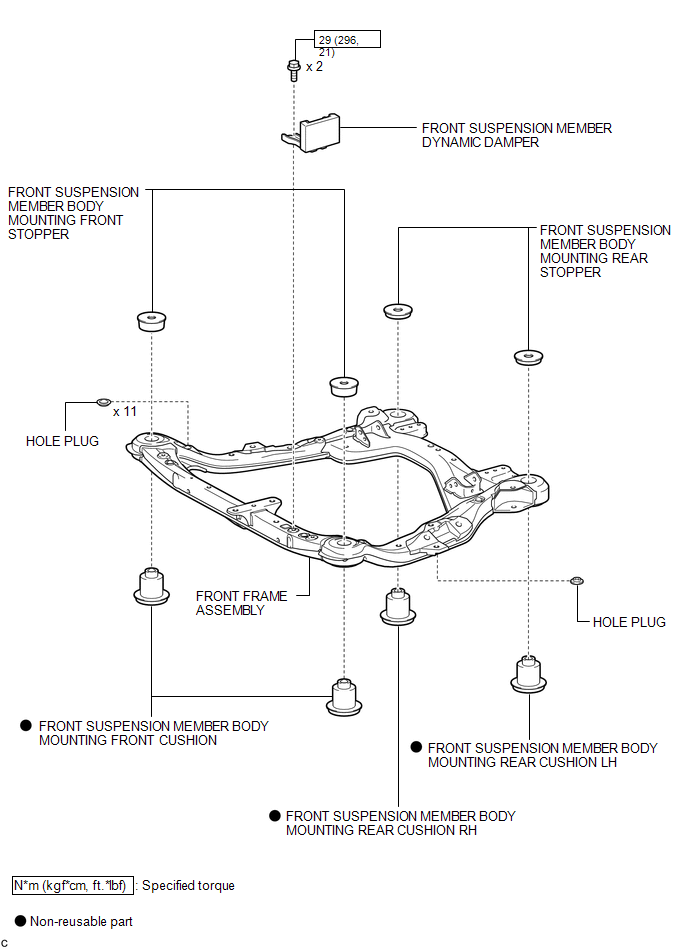

GTY591842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
