Components [10/2014 - ]: Illustration

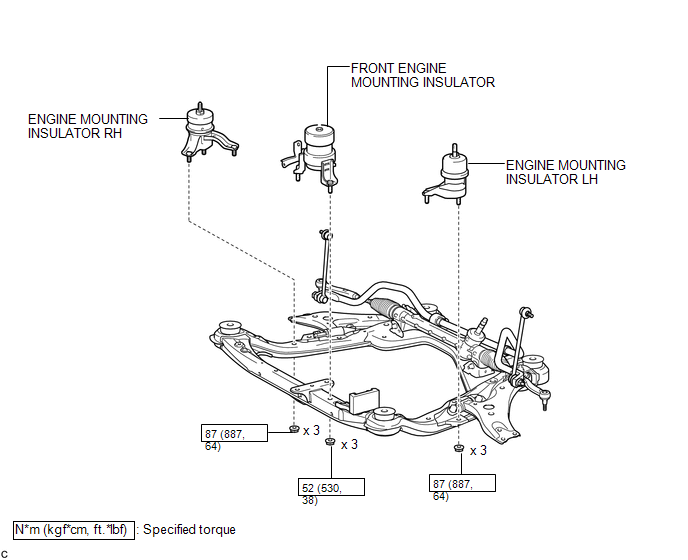

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/o Support Bridge) (1 Of 3)
GTY374325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

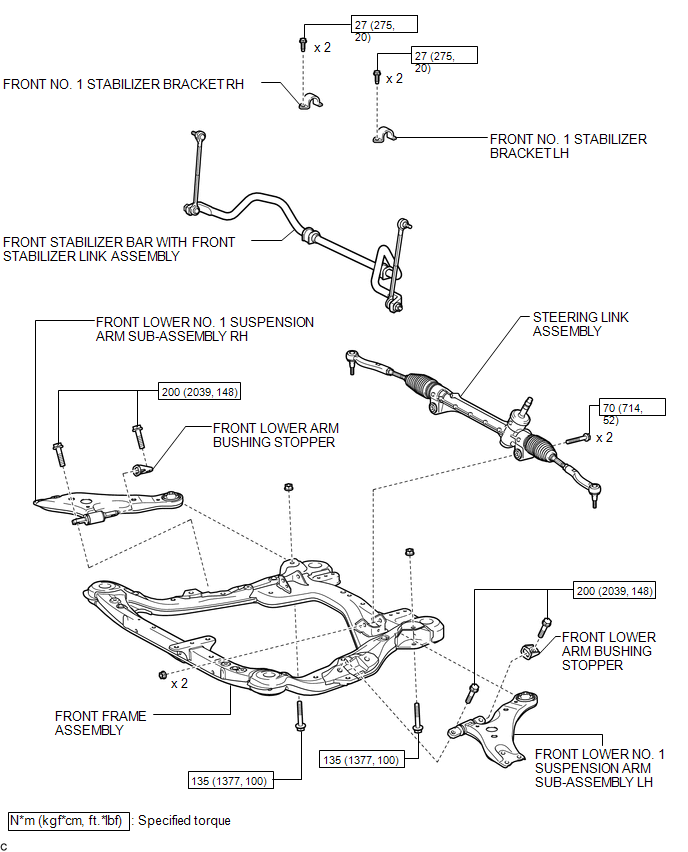

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/o Support Bridge) (2 Of 3)
GTY362003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

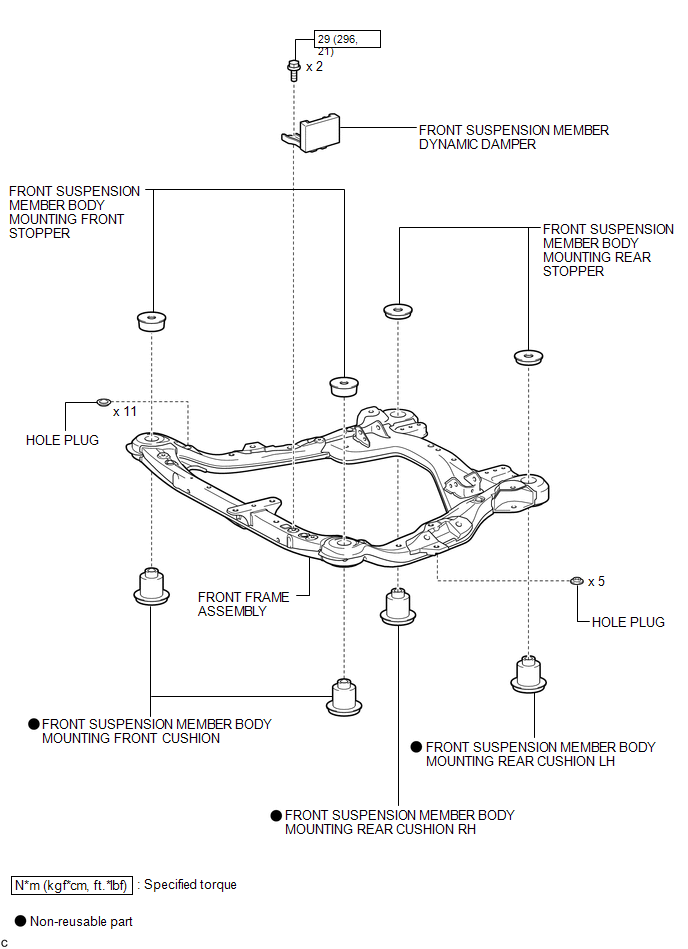

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (W/o Support Bridge) (3 Of 3)
GTY595853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
