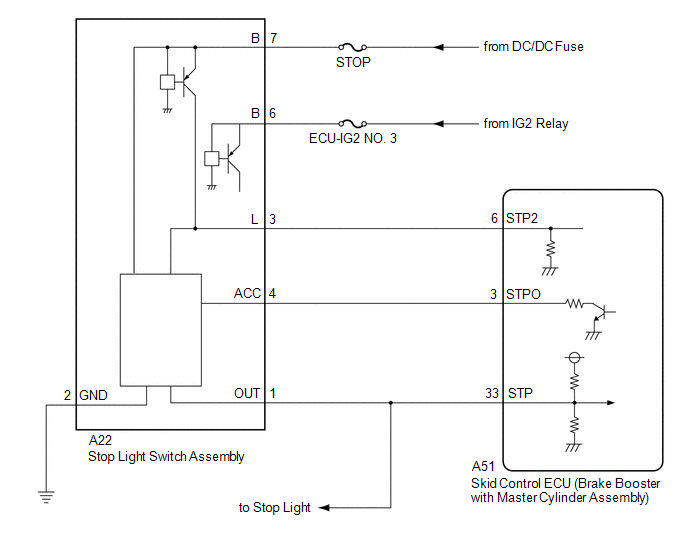

DTC C1A4B: Stop Light Relay Circuit [10/2015 - ]: Wiring Diagram

GTY607090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
