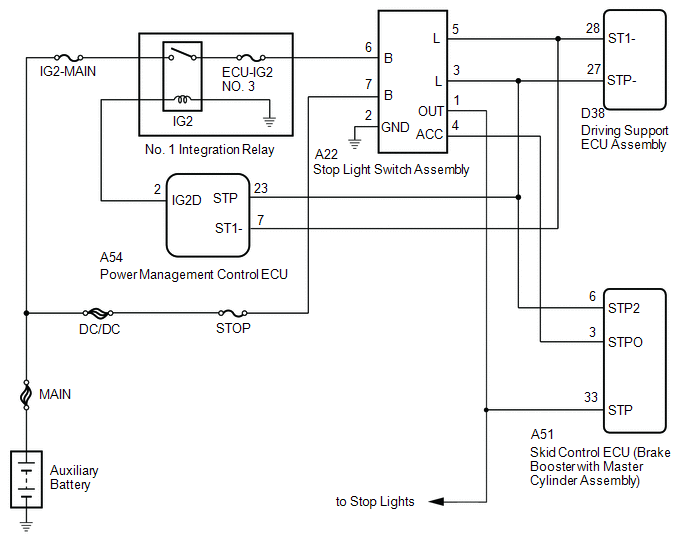

DTC C1A4B: Stop Light Relay Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY608691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
