Power Source Circuit [10/2014 - 10/2015]: Procedure

1. Disconnect the D26 and D27 seat belt control ECU connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D26-7 (+B) - Body ground	Always	11 to 14 V
   D27-8 (IG1) - Body ground	Power switch on (IG)	11 to 14 V
   	Power switch off	Below 1 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D26-8 (PGND) - Body ground	Always	Below 1 Ω

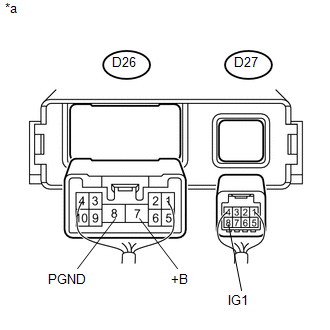

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Seat Belt Control ECU)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [10/2014 - 10/2015] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
