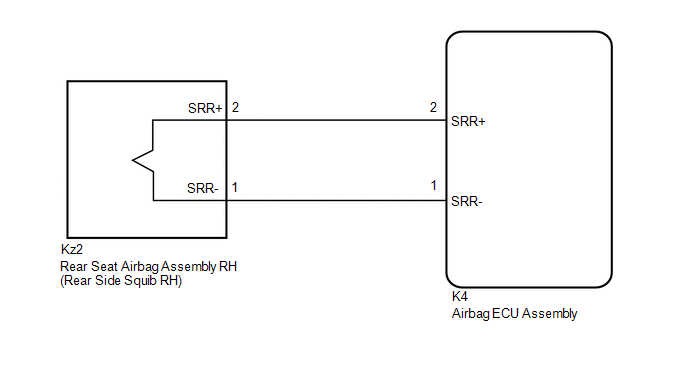

DTC B1850/62: Short in Rear Side Squib RH Circuit; DTC B1851/62: Open in Rear Side Squib RH Circuit; DTC B1852/62: Short to GND in Rear Side Squib RH Circuit; DTC B1853/62: Short to B+ in Rear Side Squib RH Circuit [10/2014 - ]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
