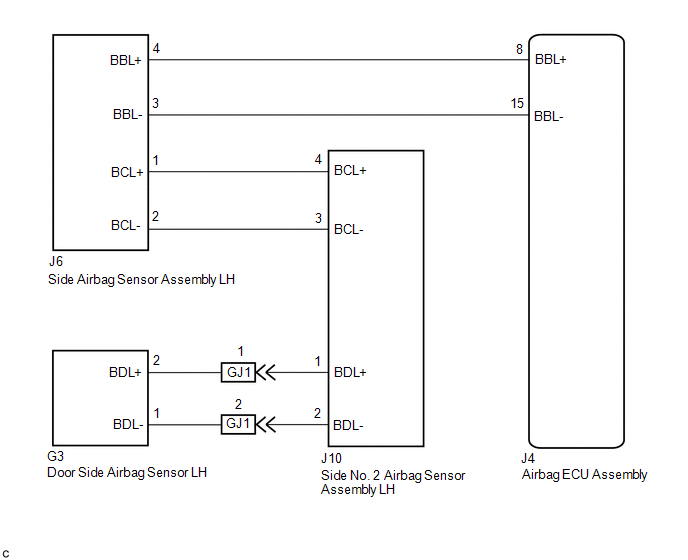

DTC B1695/16: Door Side Airbag Sensor LH Malfunction [10/2014 - ]: Wiring Diagram

GTY543299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
