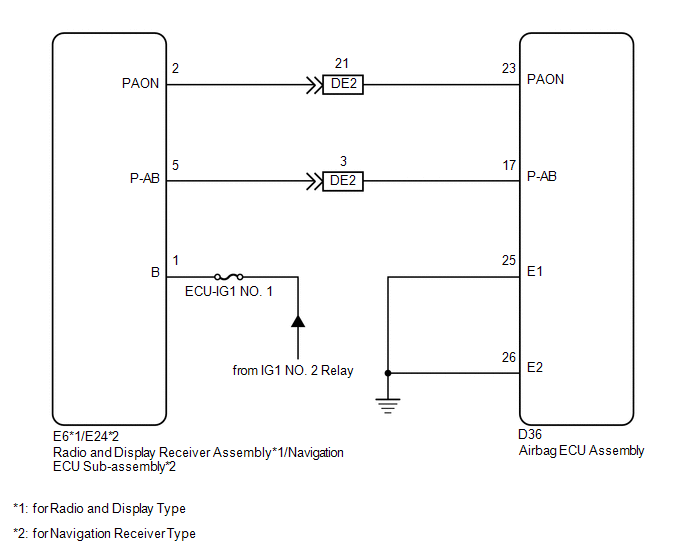

DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [10/2014 - ]: Wiring Diagram

GTY579840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
