DTC B1615/14: Front Airbag Sensor LH Circuit Malfunction [10/2014 - ]: Wiring Diagram

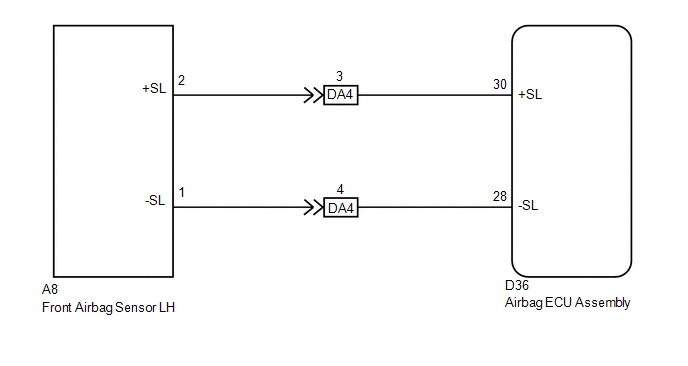

GTY607470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
