Installation [10/2015 - ]: Procedure

1. Engage the 2 clips to install a new rear No. 2 side rail spacer.

1. Insert the guide into the body hole and engage the clip to temporarily install a new rear No. 3 side rail spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

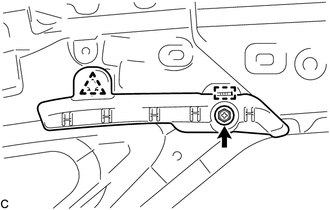

2. Install the rear No. 3 side rail spacer with a new bolt.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

1. Check that the power switch is off.
2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

3. Insert the 2 hooks into the body holes.

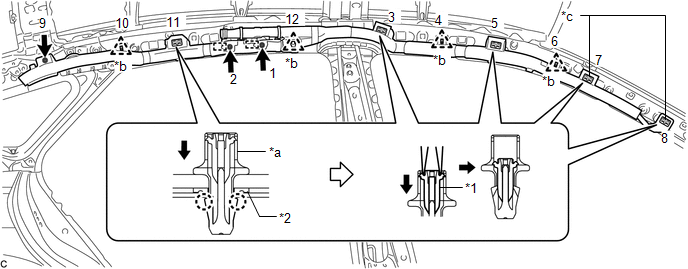

4. Install the curtain shield airbag assembly with 3 new bolts, 5 new clips (A) with pins and 2 spacers, and engage 4 clips (B) in the order shown in the illustration.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   NOTE:

   Do not twist the curtain shield airbag assembly when installing it.

   HINT:

   Engage the 2 claws to install each new clip (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pin	*2	Spacer
   *a	Clip (A)	*b	Clip (B)
   *c	Spacer Location	-	-

5. Using needle nose pliers, push the 5 pins into the 5 clips (A).
   NOTE:

   • Do not damage the pins.
   • Make sure that the pins of the clips (A) are pushed in firmly.
6. Connect the airbag connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Airbag Connector
   *2	Airbag Connector Lock

   NOTE:

   When connecting any airbag connector, take care not to damage the airbag wire harness.

7. Push in the airbag connector lock to install the curtain shield airbag assembly connector.

Refer to INSTALLATION [10/2015 - ]

Refer to DTC CHECK / CLEAR [10/2014 - ]
