Installation [10/2014 - 10/2015]: Procedure

INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY

NOTE:

When installing the curtain shield airbag assembly, have assistants hold it to prevent it from bending.

Check that the power switch is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

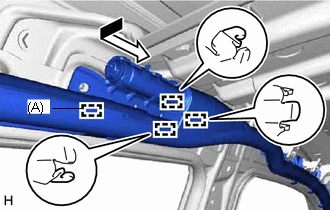

Engage the 3 hooks to temporarily install the curtain shield airbag assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

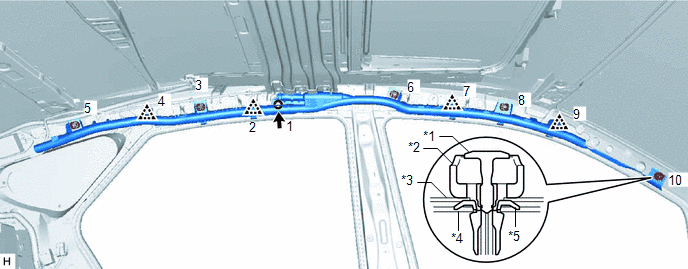

Engage the 4 clips, install a new bolt, 5 new clips and a new spacer in the order shown in the illustration.

Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

NOTE:

Do not twist the curtain shield airbag assembly when installing it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Pin	*2	Clip
*3	Curtain Shield Airbag Assembly	*4	Body Panel
*5	Spacer	-	-

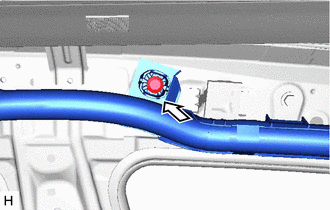

Push in the 5 pins to each clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure that the pins of the clips are pushed in firmly.

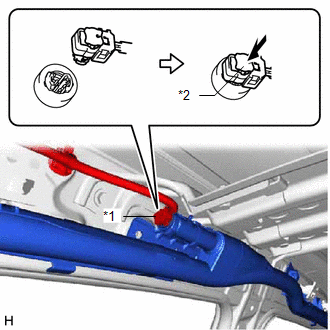

Connect the airbag connector.

TEXT IN ILLUSTRATION

*1	Airbag Connector
*2	Airbag Connector Lock

NOTE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

Push in the airbag connector lock to install the curtain shield airbag assembly connector.
