DTC P2532-772: Ignition Switch Run Position Circuit High [10/2014 - 10/2015]: Procedure
- CHECK HARNESS AND CONNECTOR (+B SHORT)
- Disconnect the A54 power management control ECU connector.

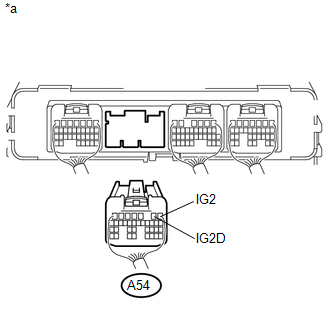

*a Rear view of wire harness connector
(to Power Management Control ECU) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A54-1 (IG2) - Body ground Power switch off 1 V or less A54-2 (IG2D) - Body ground Power switch off 1 V or less - Reconnect the A54 power management control ECU connector.
Result:
OK
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to COMPONENTS [10/2014 - 10/2015] )
Result:
NG
See step 2
- Disconnect the A54 power management control ECU connector.
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - NO. 1 INTEGRATION RELAY)
- Disconnect the A54 power management control ECU connector.
- Remove the No. 1 integration relay from the engine room relay block and junction block assembly.
*a Rear view of wire harness connector
(to Power Management Control ECU) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A54-1 (IG2) - Body ground Power switch off 1 V or less A54-2 (IG2D) - Body ground Power switch off 1 V or less - Install the No. 1 integration relay.
- Reconnect the A54 power management control ECU connector.
Result:
OK
REPLACE NO. 1 INTEGRATION RELAY
(Refer to COMPONENTS [10/2014 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
