DTC P0C76-523: Hybrid Battery System Discharge Time Too Long [10/2014 - 10/2015]: Procedure

  1. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Result

      Result Proceed to
      P0C76-523 only is output, or DTCs except the ones in the table below are also output. A
      Any of the following DTCs are also output. B
      DTC No. Relevant Diagnosis
      P0A1A-151, 155, 156, 200, 658, 659, 791, 792, 793 Generator Control Module
      P0A1B-163, 164, 168, 193, 511, 661, 786, 794, 795, 796 Drive Motor "A" Control Module
      P0A1D-148 Hybrid Powertrain Control Module
      P0A3F-243 Drive Motor "A" Position Sensor Circuit
      P0A40-500 Drive Motor "A" Position Sensor Circuit Range/Performance
      P0A41-245 Drive Motor "A" Position Sensor Circuit Low
      P0A4B-253 Generator Position Sensor Circuit
      P0A4C-513 Generator Position Sensor Circuit Range/Performance
      P0A4D-255 Generator Position Sensor Circuit Low
      P0A78-266, 267 Drive Motor "A" Inverter Performance
      P0ADC-226 Hybrid Battery Positive Contactor Control Circuit High
      P0AE0-228 Hybrid Battery Negative Contactor Control Circuit High
      P0AE7-224 Hybrid Battery Precharge Contactor Control Circuit High
      P2511-149 ECM/PCM Power Relay Sensor Circuit Intermittent
      P324E-788 MG-ECU Power Relay Intermittent Circuit
      U0110 (all INF codes)*1 Lost Communication with Drive Motor Control Module "A"

      HINT:

      • *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.
      • P0C76-523 may be stored due to a malfunction which causes the DTCs in the preceding table to be stored. In this case, first troubleshoot the output DTCs in the preceding table. Then, perform a reproduction test to check that no DTCs are output.
    5. Turn the power switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    (Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 10/2015] )

    Result:

    A

    See step  2

  2. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Result

      Result Proceed to
      Any of the following DTCs are also output. A
      P0C76-523 only is output, or DTCs except the ones in the table below are also output. B
      DTC No. Relevant Diagnosis
      P0A78-306 Drive Motor "A" Inverter Performance
      P0A7A-344 Generator Inverter Performance
      P0A90-251, 509 Drive Motor "A" Performance
      P0A92-261, 521 Hybrid Generator Performance

      HINT:

      When the DTCs listed in the preceding table are also output, there may be a short between the HSDN (MG shut down signal) circuit and power circuit.

    5. Turn the power switch off.

    Result:

    B

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to COMPONENTS [10/2014 - ] )

    Result:

    A

    See step  3

  3. CHECK POWER MANAGEMENT CONTROL ECU
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

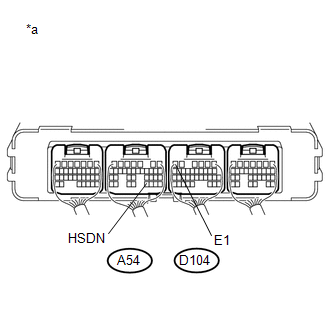

      GTY555397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Power Management Control ECU)

      Standard Voltage

      Tester Connection Condition Specified Condition
      A54-31 (HSDN) - D104-6 (E1) Power switch on (IG) Below 4.5 V
    3. Turn the power switch off.

    Result:

    OK

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to COMPONENTS [10/2014 - ] )

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - INVERTER WITH CONVERTER ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.

    2. Disconnect the A50 inverter with converter assembly connector.
    3. Disconnect the A54 power management control ECU connector.
    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Turn the power switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

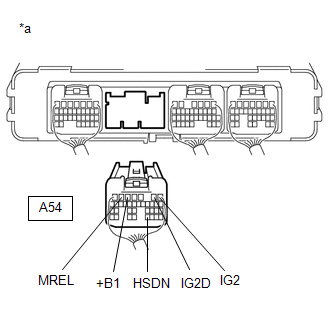

      GTY604855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear view of wire harness connector
      (to Power Management Control ECU)

      Standard Voltage

      Tester Connection Condition Specified Condition
      A54-31 (HSDN) or A50-40 (HSDN) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

      GTY572264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *b Front view of wire harness connector
      (to Inverter with Converter Assembly)
    7. Turn the power switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A54-31 (HSDN) - A54-1 (IG2) Power switch off 10 kΩ or higher
      A54-31 (HSDN) - A54-2 (IG2D) Power switch off 10 kΩ or higher
      A54-31 (HSDN) - A54-5 (+B1) Power switch off 10 kΩ or higher
      A54-31 (HSDN) - A54-6 (MREL) Power switch off 10 kΩ or higher
      A50-40 (HSDN) - A50-30 (+B) Power switch off 10 kΩ or higher
      A50-40 (HSDN) - A50-31 (+B2) Power switch off 10 kΩ or higher
    10. Reconnect the A50 inverter with converter assembly connector.
    11. Reconnect the A54 power management control ECU connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK INVERTER WITH CONVERTER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.

    2. Disconnect the A50 inverter with converter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY545042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Inverter with Converter Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A50-40 (HSDN) - A50-30 (+B) Power switch off 5 kΩ or higher
      A50-40 (HSDN) - A50-31 (+B2) Power switch off 5 kΩ or higher
    4. Reconnect the A50 inverter with converter assembly connector.

    Result:

    OK

    REPLACE POWER MANAGEMENT CONTROL ECU

    (Refer to COMPONENTS [10/2014 - 10/2015] )

    Result:

    NG

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to COMPONENTS [10/2014 - ] )
