DTC P0AA1-231: Hybrid Battery Positive Contactor Circuit Stuck Closed [10/2014 - 10/2015]: Procedure
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Result
Result Proceed to P0AA1-231 only is output, or DTCs except the ones in the table below are also output. A Any of the following DTCs including pending DTCs are also output. B DTC No. Relevant Diagnosis P0A1A-151, 155, 156, 200, 658, 659, 791, 792, 793 Generator Control Module P0A1B-163, 164, 168, 193, 511, 512, 661, 786, 794, 795, 796 Drive Motor "A" Control Module P0A1D-148 Hybrid Powertrain Control Module P0A3F-243 Drive Motor "A" Position Sensor Circuit P0A40-500 Drive Motor "A" Position Sensor Circuit Range/Performance P0A41-245 Drive Motor "A" Position Sensor Circuit Low P0A4B-253 Generator Position Sensor Circuit P0A4C-513 Generator Position Sensor Circuit Range/Performance P0A4D-255 Generator Position Sensor Circuit Low P0A78-266, 267, 586 Drive Motor "A" Inverter Performance P0A94-442 DC / DC Converter Performance P0ADC-226 Hybrid Battery Positive Contactor Control Circuit High P0C76-523 Hybrid Battery System Discharge Time Too Long P2511-149 ECM/PCM Power Relay Sensor Circuit Intermittent P3004-132 High Voltage Power Resource P324E-788 MG-ECU Power Relay Intermittent Circuit U0110 (all INF codes)*1 Lost Communication with Drive Motor Control Module "A" HINT:
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.
- P0AA1-231 may be stored due to a malfunction which causes the DTCs in the preceding table to be stored. In this case, first troubleshoot the output DTCs in the preceding table. Then, perform a reproduction test to check that no DTCs are output.
- Turn the power switch off.
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM)
(Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 10/2015] )
Result:
A
See step 2
- CHECK FREEZE FRAME DATA (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Read the freeze frame data of DTC P0AA1-231.
Result
Result Proceed to "VL-Voltage before Boosting" is 55 V or more. A "VL-Voltage before Boosting" is less than 55 V. B - Turn the power switch off.
Result:
B
REPLACE INVERTER WITH CONVERTER ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
Result:
A
See step 3
- CHECK HV BATTERY JUNCTION BLOCK ASSEMBLY WARNING:
Be sure to wear insulated gloves.
HINT:
- If a system main relay is stuck closed, inspect the hybrid battery junction block assembly without removing it from the vehicle, in order to keep the relay closed.
- If the result of reading the freeze frame data is A, the hybrid battery junction block assembly must be replaced. Measuring resistance can determine that this is either a present or past malfunction.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Remove the No. 1 hybrid battery shield sub-assembly (Refer to PROCEDURE - Step 10 ).

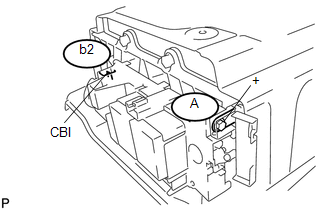

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition b2-1 (CBI) - A-1 (+) Power switch off 10 kΩ or higher - Install the No. 1 hybrid battery shield sub-assembly.
Result:
OK
REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
Result:
NG
REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
