DTC P0A94-587: DC / DC Converter Performance [10/2014 - 10/2015]: Description
For a description of the boost converter (Refer to DESCRIPTION ).
The MG ECU uses a voltage sensor (VL) that is built into the boost converter to detect the high voltage before it is boosted. The ECU also uses the battery voltage sensor to detect HV battery voltage (VB).
HINT:

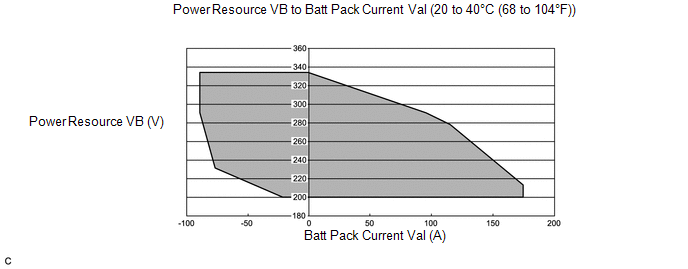

Using the Techstream, check the Data List values of "Power Resource VB" and "Batt Pack Current Val". If these values are not within the range below, there is a malfunction in the battery voltage sensor circuit.
| DTC No. | INF Code | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| P0A94 | 587 | Voltages from HV battery voltage (VB) sensor and boost converter voltage (VL) sensor deviate |
|
