DTC P0A10-592: DC / DC Converter Status Circuit High Input [10/2015 - ]: Procedure

  1. CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY (CHECK WAVEFORM)

    Refer to PROCEDURE - Step 3

    Result:

    NG

    See step  5

    Result:

    OK

    See step  2

  2. CLEAR DTC

    Refer to PROCEDURE - Step 4

    NEXT

    See step  3

  3. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Result

      Result Proceed to
      P0A10-592 is not output. A
      P0A10-592 is output again. B
    5. Turn the power switch off.

    Result:

    B

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

    (Refer to COMPONENTS [10/2015 - ] )

    Result:

    A

    See step  4

  4. CHECK FOR INTERMITTENT PROBLEMS

    (Refer to CHECK FOR INTERMITTENT PROBLEMS [10/2014 - ] )

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

    (Refer to COMPONENTS [10/2015 - ] )

    Result:

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

  5. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.

    2. Disconnect the A49 inverter with converter assembly connector.
    3. Disconnect the A67 hybrid vehicle control ECU assembly connector.
    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Turn the power switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

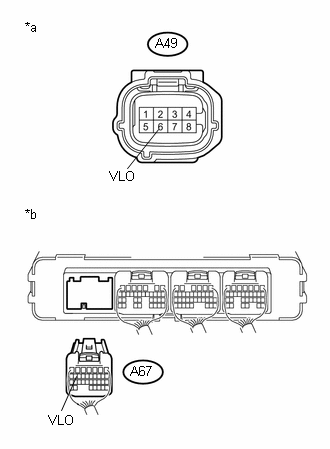

      GTY546633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)
      *b Rear view of wire harness connector
      (to Hybrid Vehicle Control ECU Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      A49-6 (VLO) or A67-16 (VLO) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the inverter with converter assembly connector and the hybrid vehicle control ECU assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    7. Turn the power switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal.
    9. Reconnect the A67 hybrid vehicle control ECU assembly connector.
    10. Reconnect the A49 inverter with converter assembly connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

    (Refer to COMPONENTS [10/2015 - ] )

    Result:

    NEXT

    See step  7

  7. CLEAR DTC

    Refer to PROCEDURE - Step 4

    NEXT

    See step  8

  8. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Result

      Result Proceed to
      DTC P0A10-592 is not output. A
      DTC P0A10-592 is output again. B
    5. Turn the power switch off.

    Result:

    A

    COMPLETED

    Result:

    B

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to COMPONENTS [10/2014 - ] )
