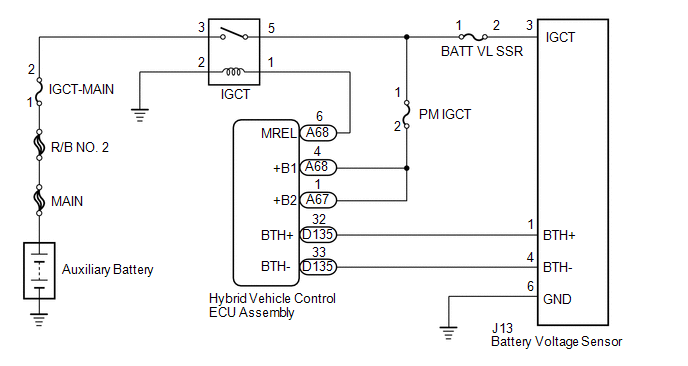

DTC P0AFC-150: Hybrid Battery Pack Sensor Module [10/2015 - ]: Wiring Diagram

GTY603320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
