DTC P3110-223: HV Main Relay [10/2015 - ]: Procedure

1. Remove the IGCT relay from the No. 2 engine room relay block.
2. Measure the resistance according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	IGCT Relay

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage is not applied between terminals 1 and 2	10 kΩ or higher

3. Install the IGCT relay.

NG

REPLACE RELAY (IGCT)

OK

See step  2

1. Remove the IGCT relay from the No. 2 engine room relay block.
2. Disconnect the A67 and A68 hybrid vehicle control ECU assembly connectors.
3. Measure the voltage according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 2 Engine Room Relay Block	*2	IGCT Relay

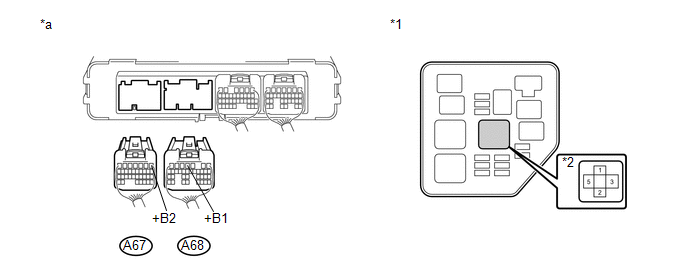

   *a	Rear view of wire harness connector (to Hybrid Vehicle Control ECU Assembly)	-	-

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A68-4 (+B1), A67-1 (+B2) or 5 (IGCT relay) - Body ground	Power switch off	Below 1 V

4. Install the IGCT relay.
5. Reconnect the A67 and A68 hybrid vehicle control ECU assembly connectors.

OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

(Refer to COMPONENTS [10/2015 - ] )

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
