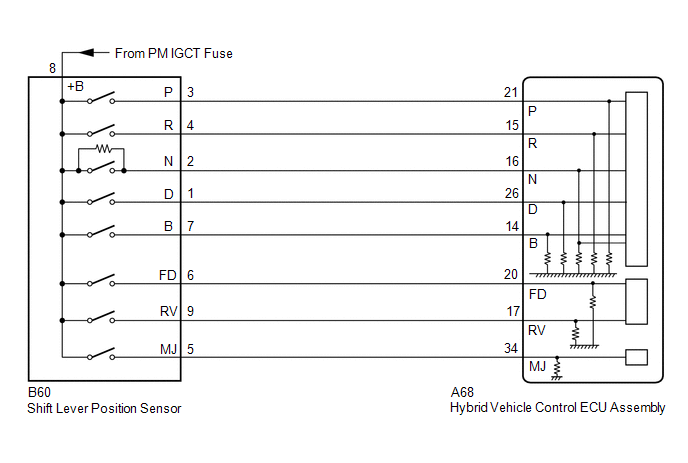

DTC P0705-757: Transmission Range Sensor Circuit [10/2015 - ]: Wiring Diagram

GTY571640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
