Hybrid Control System - Diagnostic Codes - (Hybrid) (2 Of 8)
>>
Hybrid Control System
>>
DTC U0110-159: Lost Communication with Drive Motor Control Module "A"; DTC U0110-656: Lost Communication with Drive Motor Control Module "A"; DTC U0110-657: Lost Communication with Drive Motor Control Module "A" [10/2014 - 10/2015]
>>
Wiring Diagram

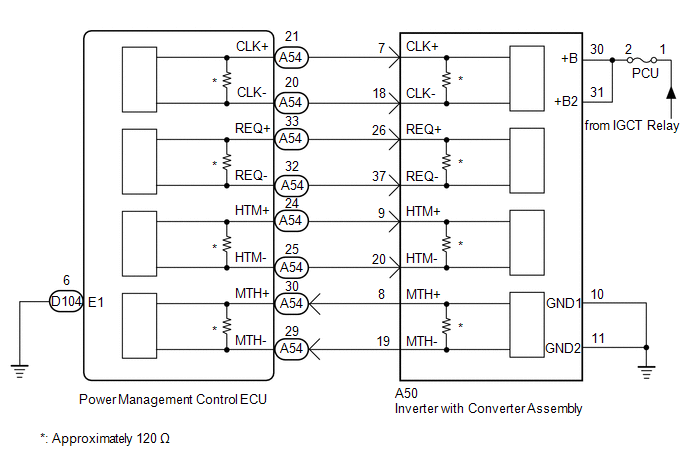

DTC U0110-159: Lost Communication with Drive Motor Control Module "A"; DTC U0110-656: Lost Communication with Drive Motor Control Module "A"; DTC U0110-657: Lost Communication with Drive Motor Control Module "A" [10/2014 - 10/2015]: Wiring Diagram
