DTC P3110-223: HV Main Relay [10/2014 - 10/2015]: Procedure
- INSPECT RELAY (IGCT)
- Remove the IGCT relay from the No. 2 engine room relay block.
- Measure the resistance according to the value (s) in the table below.
*1 IGCT Relay Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage is not applied between terminals 1 and 2 10 kΩ or higher - Install the IGCT relay.
NG
REPLACE RELAY (IGCT)
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - NO. 2 ENGINE ROOM RELAY BLOCK)
- Remove the IGCT relay from the No. 2 engine room relay block.
- Disconnect the A53 and A54 power management control ECU connectors.
- Measure the voltage according to the value (s) in the table below.

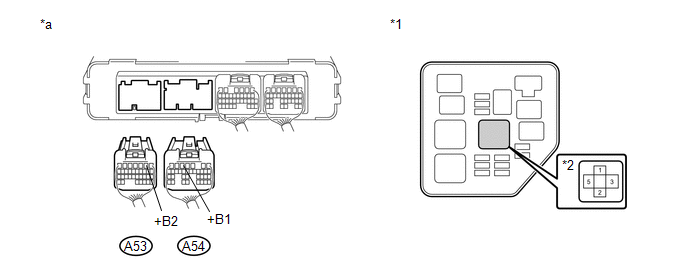

*1 No. 2 Engine Room Relay Block *2 IGCT Relay *a Rear view of wire harness connector
(to Power Management Control ECU)- - Standard Voltage
Tester Connection Condition Specified Condition A54-5 (+B1), A53-2 (+B2) or 5 (IGCT relay) - Body ground Power switch off Below 1 V - Install the IGCT relay.
- Reconnect the A53 and A54 power management control ECU connectors.
OK
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to COMPONENTS [10/2014 - 10/2015] )
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
