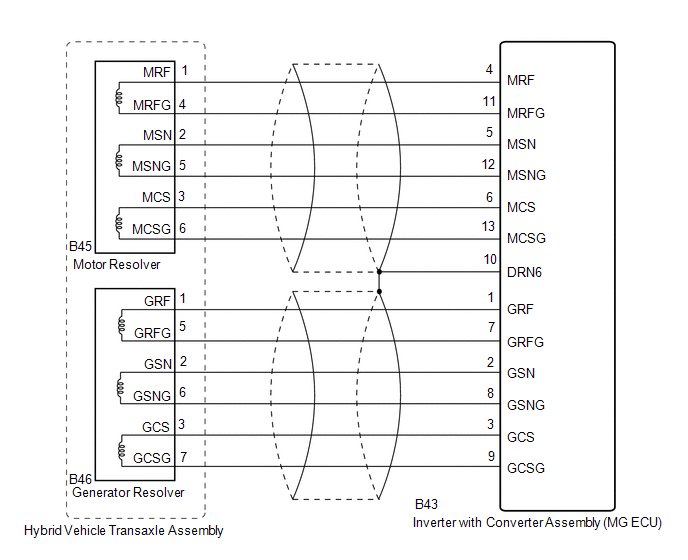

DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [10/2014 - 10/2015]: Wiring Diagram

GTY554171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
