DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [10/2014 - 10/2015]: Procedure
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Result
Result Proceed to P0A1A-200, 792 or 793 only is output, or DTCs except the ones in the table below are also output. A Any of the following DTCs are also output. B DTC No. Relevant Diagnosis P0A3F-243 Drive Motor "A" Position Sensor Circuit P0A4B-253 Generator Position Sensor Circuit P0A4C-513 Generator Position Sensor Circuit Range / Performance P0A4D-255 Generator Position Sensor Circuit Low - Turn the power switch off.
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM)
(Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 10/2015] )
A
See step 2
- CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
See step 4
NG
CONNECT SECURELY
OK
See step 3
- CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - GENERATOR RESOLVER) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Disconnect the B43 inverter with converter assembly connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG).
- Measure the voltage according to the value (s) in the table below.
*a Front view of wire harness connector
(to Inverter with Converter Assembly)Standard Voltage
Tester Connection Condition Specified Condition B43-1 (GRF) - Body ground Power switch on (IG) Below 1 V B43-7 (GRFG) - Body ground Power switch on (IG) Below 1 V B43-2 (GSN) - Body ground Power switch on (IG) Below 1 V B43-8 (GSNG) - Body ground Power switch on (IG) Below 1 V B43-3 (GCS) - Body ground Power switch on (IG) Below 1 V B43-9 (GCSG) - Body ground Power switch on (IG) Below 1 V NOTE:Turning the power switch on (IG) with the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Reconnect the B43 inverter with converter assembly connector.
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
See step 4
- Check that the service plug grip is not installed.
- CHECK GENERATOR RESOLVER WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Disconnect the B43 inverter with converter assembly connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition B43-1 (GRF) - B43-7 (GRFG) Power switch off 4.2 to 12.5 Ω B43-2 (GSN) - B43-8 (GSNG) Power switch off 9.8 to 20.1 Ω B43-3 (GCS) - B43-9 (GCSG) Power switch off 9.8 to 20.1 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition B43-1 (GRF) or B43-7 (GRFG) - Body ground and other terminals Power switch off 1 MΩ or higher B43-2 (GSN) or B43-8 (GSNG) - Body ground and other terminals Power switch off 1 MΩ or higher B43-3 (GCS) or B43-9 (GCSG) - Body ground and other terminals Power switch off 1 MΩ or higher *a Front view of wire harness connector
(to Inverter with Converter Assembly) - Reconnect the B43 inverter with converter assembly connector.
NG
See step 9
OK
See step 5
- Check that the service plug grip is not installed.
- CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLVER) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Disconnect the B43 inverter with converter assembly connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG).
- Measure the voltage according to the value (s) in the table below.
*a Front view of wire harness connector
(to Inverter with Converter Assembly)Standard Voltage
Tester Connection Condition Specified Condition B43-4 (MRF) - Body ground Power switch on (IG) Below 1 V B43-11 (MRFG) - Body ground Power switch on (IG) Below 1 V B43-5 (MSN) - Body ground Power switch on (IG) Below 1 V B43-12 (MSNG) - Body ground Power switch on (IG) Below 1 V B43-6 (MCS) - Body ground Power switch on (IG) Below 1 V B43-13 (MCSG) - Body ground Power switch on (IG) Below 1 V NOTE:Turning the power switch on (IG) with the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Reconnect the B43 inverter with converter assembly connector.
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
See step 6
- Check that the service plug grip is not installed.
- CHECK MOTOR RESOLVER WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Disconnect the B43 inverter with converter assembly connector.
- Measure the resistance according to the value (s) in the table below.
*a Front view of wire harness connector
(to Inverter with Converter Assembly)Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition B43-4 (MRF) - B43-11 (MRFG) Power switch off 4.2 to 12.5 Ω B43-5 (MSN) - B43-12 (MSNG) Power switch off 9.8 to 20.1 Ω B43-6 (MCS) - B43-13 (MCSG) Power switch off 9.8 to 20.1 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition B43-4 (MRF) or B43-11 (MRFG) - Body ground and other terminals Power switch off 1 MΩ or higher B43-5 (MSN) or B43-12 (MSNG) - Body ground and other terminals Power switch off 1 MΩ or higher B43-6 (MCS) or B43-13 (MCSG) - Body ground and other terminals Power switch off 1 MΩ or higher - Reconnect the B43 inverter with converter assembly connector.
NG
See step 11
OK
See step 7
- Check that the service plug grip is not installed.
- CHECK CONNECTOR CONNECTION CONDITION (GENERATOR RESOLVER CONNECTOR)

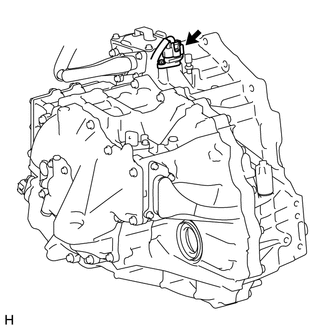

- Check the connection of the generator resolver connector.
OK
The connector is connected securely and there are no contact problems.
NG
CONNECT SECURELY
OK
See step 8
- Check the connection of the generator resolver connector.
- CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR)

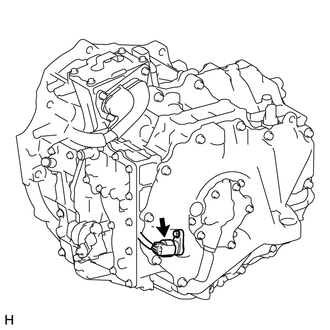

- Check the connection of the motor resolver connector.
OK
The connector is connected securely and there are no contact problems.
OK
REPLACE INVERTER WITH CONVERTER ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
NG
CONNECT SECURELY
- Check the connection of the motor resolver connector.
- CHECK CONNECTOR CONNECTION CONDITION (GENERATOR RESOLVER CONNECTOR)
- Check the connection of the generator resolver connector.
OK
The connector is connected securely and there are no contact problems.
NG
CONNECT SECURELY
OK
See step 10
- Check the connection of the generator resolver connector.
- INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (GENERATOR RESOLVER)

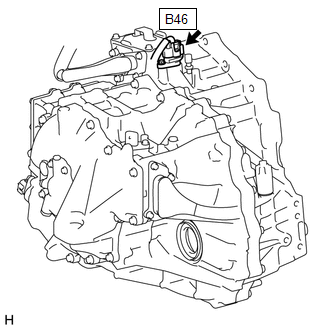

- Disconnect the B46 generator resolver connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition B46-1 (GRF) - B46-5 (GRFG) Power switch off 5.8 to 11.8 Ω B46-2 (GSN) - B46-6 (GSNG) Power switch off 11.7 to 17.7 Ω B46-3 (GCS) - B46-7 (GCSG) Power switch off 11.7 to 17.7 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition B46-1 (GRF) - Body ground and other terminals (except B46-5 (GRFG)) Power switch off 1 MΩ or higher B46-5 (GRFG) - Body ground and other terminals (except B46-1 (GRF)) Power switch off 1 MΩ or higher B46-2 (GSN) - Body ground and other terminals (except B46-6 (GSNG)) Power switch off 1 MΩ or higher B46-6 (GSNG) - Body ground and other terminals (except B46-2 (GSN)) Power switch off 1 MΩ or higher B46-3 (GCS) - Body ground and other terminals (except B46-7 (GCSG)) Power switch off 1 MΩ or higher B46-7 (GCSG) - Body ground and other terminals (except B46-3 (GCS)) Power switch off 1 MΩ or higher HINT:
The generator resolver is not available as a supply part. If it requires replacement, replace the hybrid vehicle transaxle assembly.
*a Component without harness connected
(Generator Resolver (Hybrid Vehicle Transaxle Assembly)) - Reconnect the B46 generator resolver connector.
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
NG
REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
- Disconnect the B46 generator resolver connector.
- CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR)
- Check the connection of the motor resolver connector.
OK
The connector is connected securely and there are no contact problems.
NG
CONNECT SECURELY
OK
See step 12
- Check the connection of the motor resolver connector.
- INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR RESOLVER)

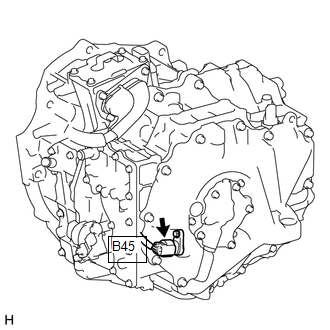

- Disconnect the B45 motor resolver connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition B45-1 (MRF) - B45-4 (MRFG) Power switch off 5.8 to 11.8 Ω B45-2 (MSN) - B45-5 (MSNG) Power switch off 11.7 to 17.7 Ω B45-3 (MCS) - B45-6 (MCSG) Power switch off 11.7 to 17.7 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition B45-1 (MRF) - Body ground and other terminals (except B45-4 (MRFG)) Power switch off 1 MΩ or higher B45-4 (MRFG) - Body ground and other terminals (except B45-1 (MRF)) Power switch off 1 MΩ or higher B45-2 (MSN) - Body ground and other terminals (except B45-5 (MSNG)) Power switch off 1 MΩ or higher B45-5 (MSNG) - Body ground and other terminals (except B45-2 (MSN)) Power switch off 1 MΩ or higher B45-3 (MCS) - Body ground and other terminals (except B45-6 (MCSG)) Power switch off 1 MΩ or higher B45-6 (MCSG) - Body ground and other terminals (except B45-3 (MCS)) Power switch off 1 MΩ or higher HINT:
The motor resolver is not available as a supply part. If it requires replacement, replace the hybrid vehicle transaxle assembly.
*a Component without harness connected
(Motor Resolver (Hybrid Vehicle Transaxle Assembly)) - Reconnect the B45 motor resolver connector.
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
NG
REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
- Disconnect the B45 motor resolver connector.
