DTC P0A09-265: DC / DC Converter Status Circuit Low Input [10/2014 - 10/2015]: Procedure
- CHECK CONNECTOR CONNECTION CONDITION (POWER MANAGEMENT CONTROL ECU CONNECTOR)
See step 3
NG
CONNECT SECURELY
OK
See step 2
- CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
See step 4
NG
CONNECT SECURELY
OK
See step 3
- CHECK POWER MANAGEMENT CONTROL ECU (NODD)
- Turn the power switch on (READY).
- Measure the voltage according to the value (s) in the table below.
*a Component with harness connected
(Power Management Control ECU)Standard Voltage
Tester Connection Condition Specified Condition A53-21 (NODD) - D104-6 (E1) Power switch on (READY) 5 to 7 V - Turn the power switch off.
NG
See step 7
OK
See step 4
- CLEAR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Clear the DTCs and freeze frame data.
- Turn the power switch off.
NEXT
See step 5
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Result
Result Proceed to DTC P0A09-265 is not output. A DTC P0A09-265 is output again. B - Turn the power switch off.
B
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to COMPONENTS [10/2014 - 10/2015] )
A
See step 6
- CHECK FOR INTERMITTENT PROBLEMS
(Refer to CHECK FOR INTERMITTENT PROBLEMS [10/2014 - ] )
OK
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to COMPONENTS [10/2014 - 10/2015] )
NG
REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
- CHECK HARNESS AND CONNECTOR (RESISTANCE VALUE OF NODD INSIDE POWER MANAGEMENT CONTROL ECU)
See step 11
OK
REPLACE INVERTER WITH CONVERTER ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
NG
See step 8
- CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - POWER MANAGEMENT CONTROL ECU) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.
- Disconnect the A49 inverter with converter assembly connector.
- Disconnect the A53 power management control ECU connector.
- Measure the resistance according to the value (s) in the table below.

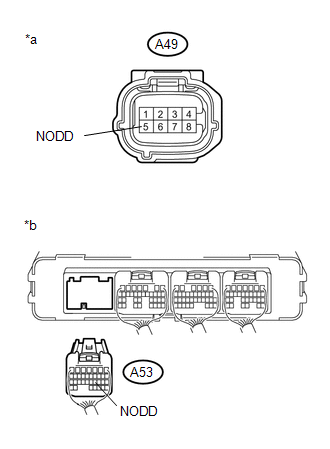

*a Front view of wire harness connector
(to Inverter with Converter Assembly)*b Rear view of wire harness connector
(to Power Management Control ECU)Standard Resistance
Tester Connection Condition Specified Condition A49-5 (NODD) - A53-21 (NODD) Power switch off Below 1 Ω A49-5 (NODD) or A53-21 (NODD) - Body ground and other terminals Power switch off 10 kΩ or higher - Reconnect the A49 inverter with converter assembly connector.
- Reconnect the A53 power management control ECU connector.
OK
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to COMPONENTS [10/2014 - 10/2015] )
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Check that the service plug grip is not installed.
