Pattern Select Switch Sport Mode Circuit [10/2014 - 10/2015]: Procedure
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
See step 2
Result:
B
GO TO CAN COMMUNICATION SYSTEM
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] )
Result:
A
See step 2
- CHECK DTC OUTPUT (HEALTH CHECK)
See step 3
Result:
B
GO TO APPLICABLE DTC CHART
Result:
A
See step 3
- PERFORM ACTIVE TEST USING TECHSTREAM (INDICAT. SPORT (CVT SPORT))
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Enter the following menus: Body Electrical / Combination Meter / Active Test / Indicat. Sport (CVT Sport).
- Perform the "Indicat. Sport (CVT Sport)" Active Test.
OK
The SPORT indicator light comes on or blinks.
- Turn the power switch off.
Result:
NG
REPLACE COMBINATION METER ASSEMBLY
(Refer to COMPONENTS [10/2014 - 10/2015] )
Result:
OK
See step 4
- READ VALUE USING TECHSTREAM (PATTERN SWITCH (PWR/M))
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / Pattern Switch (PWR/M).
- Read the value displayed on the Techstream.
Tester Display Measurement Item/Range Normal Condition Pattern Switch (PWR/M) SPORT mode transition availability/
ON or OFFIn SPORT mode: ON Result
Result Proceed to The Techstream display changes according to the SPORT mode switch (combination switch assembly) operation. A The Techstream display does not change according to the SPORT mode switch (combination switch assembly) operation. B
Result:
A
CHECK FOR INTERMITTENT PROBLEMS
(Refer to CHECK FOR INTERMITTENT PROBLEMS [10/2014 - ] )
Result:
B
See step 5
- READ VALUE USING TECHSTREAM (SPORT MODE SWITCH)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Engine and ECT / Data List / Sports Mode Switch.
- Read the value displayed on the Techstream.
Tester Display Measurement Item/Range Normal Condition Sports Mode Switch SPORT mode switch (combination switch assembly) condition /
ON or OFFSPORT mode switch (combination switch assembly) being pushed and held: ON
SPORT mode switch (combination switch assembly) not pushed: OFFResult
Result Proceed to The Techstream display changes according to the SPORT mode switch (combination switch assembly) operation. A The Techstream display does not change according to the SPORT mode switch (combination switch assembly) operation. B
Result:
A
REPLACE ECM
(Refer to COMPONENTS [10/2014 - ] )
Result:
B
See step 6
- CHECK SPORT MODE SWITCH (COMBINATION SWITCH ASSEMBLY)
- Remove the SPORT mode switch (combination switch assembly) (Refer to COMPONENTS [10/2014 - ] ).
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(SPORT Mode Switch (Combination Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition 1 (PWR) - 3 (E) SPORT mode switch (combination switch assembly) being pushed and held Below 1 Ω SPORT mode switch (combination switch assembly) not pushed 10 kΩ or higher - Install the SPORT mode switch (combination switch assembly).
Result:
NG
REPLACE SPORT MODE SWITCH (COMBINATION SWITCH ASSEMBLY)
(Refer to COMPONENTS [10/2014 - ] )
Result:
OK
See step 7
- CHECK HARNESS AND CONNECTOR (SPORT MODE SWITCH (COMBINATION SWITCH ASSEMBLY) - BODY GROUND)
- Disconnect the D107 SPORT mode switch (combination switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to EV Drive Mode Switch (Combination Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition D107-3 (E) - Body ground Always Below 1 Ω - Reconnect the D107 SPORT mode switch (combination switch assembly) connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- CHECK HARNESS AND CONNECTOR (ECM - SPORT MODE SWITCH (COMBINATION SWITCH ASSEMBLY))
- Disconnect the A18 ECM connector.
- Disconnect the D107 SPORT mode switch (combination switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.

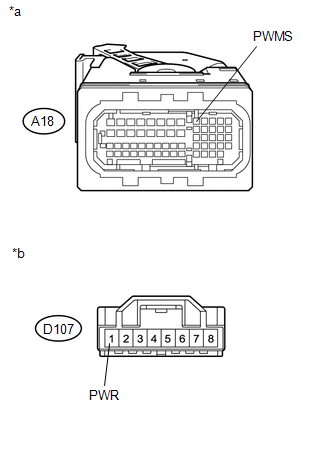

*a Front view of wire harness connector
(to ECM)*b Front view of wire harness connector
(to SPORT Mode Switch (Combination Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition A18-9 (PWMS) - D107-1 (PWR) Always Below 1 Ω A18-9 (PWMS) or D107-1 (PWR) - Body ground Always 10 kΩ or higher - Reconnect the D107 SPORT mode switch (combination switch assembly) connector.
- Reconnect the A18 ECM connector.
Result:
OK
REPLACE ECM
(Refer to COMPONENTS [10/2014 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
