Pattern Select Switch Eco Mode Circuit [10/2014 - 10/2015]: Procedure
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
See step 2
Result:
B
GO TO CAN COMMUNICATION SYSTEM
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] )
Result:
A
See step 2
- CHECK DTC OUTPUT (HEALTH CHECK)
See step 3
Result:
B
GO TO APPLICABLE DTC CHART
Result:
A
See step 3
- PERFORM ACTIVE TEST USING TECHSTREAM (INDICAT. ECO MODE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (READY).
- Enter the following menus: Body Electrical / Combination Meter / Active Test / Indicat. ECO MODE.
- Perform the "Indicat. Sport ECO MODE" Active Test.
OK
The ECO MODE indicator light comes on or blinks.
- Turn the power switch off.
Result:
NG
REPLACE COMBINATION METER ASSEMBLY
(Refer to COMPONENTS [10/2014 - 10/2015] )
Result:
OK
See step 4
- READ VALUE USING TECHSTREAM (ECO MODE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Data List / ECO Mode.
- Read the value displayed on the Techstream.
Tester Display Measurement Item/Range Normal Condition ECO Mode ECO mode transition availability/
ON or OFFIn ECO mode: ON Result
Result Proceed to The Techstream display changes according to the ECO mode switch (combination switch assembly) operation. A The Techstream display does not change according to the ECO mode switch (combination switch assembly) operation. B
Result:
A
CHECK FOR INTERMITTENT PROBLEMS
(Refer to CHECK FOR INTERMITTENT PROBLEMS [10/2014 - ] )
Result:
B
See step 5
- READ VALUE USING TECHSTREAM (ECO SWITCH)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Body Electrical / Air Conditioning / Data List / ECO Switch.
- Read the value displayed on the Techstream.
Tester Display Measurement Item/Range Normal Condition ECO Switch ECO mode switch (combination switch assembly) condition/
ON or OFFECO mode switch (combination switch assembly) being pushed and held: ON
ECO mode switch (combination switch assembly) not pushed: OFFResult
Result Proceed to The Techstream display changes according to the ECO mode switch (combination switch assembly) operation. A The Techstream display does not change according to the ECO mode switch (combination switch assembly) operation. B
Result:
A
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
Result:
B
See step 6
- INSPECT ECO MODE SWITCH (COMBINATION SWITCH ASSEMBLY)
- Remove the ECO mode switch (combination switch assembly) (Refer to COMPONENTS [10/2014 - ] ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (ECU) - 3 (E) ECO mode switch (combination switch assembly) being pushed and held Below 1 Ω ECO mode switch (combination switch assembly) not pushed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(ECO Mode Switch (Combination Switch Assembly)) - Install the ECO mode switch (combination switch assembly).
Result:
NG
REPLACE ECO MODE SWITCH (COMBINATION SWITCH ASSEMBLY)
(Refer to COMPONENTS [10/2014 - ] )
Result:
OK
See step 7
- CHECK HARNESS AND CONNECTOR (ECO MODE SWITCH (COMBINATION SWITCH ASSEMBLY) - BODY GROUND)
- Disconnect the D107 ECO mode switch (combination switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D107-3 (E) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to EV Drive Mode Switch (Combination Switch Assembly)) - Reconnect the D107 ECO mode switch (combination switch assembly) connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - ECO MODE SWITCH (COMBINATION SWITCH ASSEMBLY))
- Disconnect the D62 air conditioning amplifier assembly connector.
- Disconnect the D107 ECO mode switch (combination switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

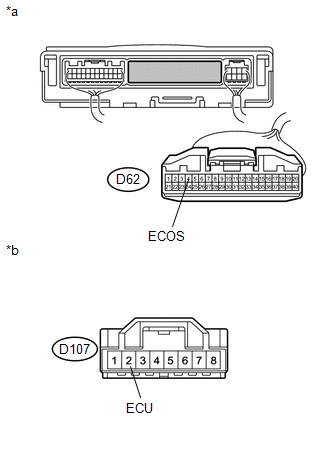

Tester Connection Condition Specified Condition D62-4 (ECOS) - D107-2 (ECU) Always Below 1 Ω D62-4 (ECOS) or D107-2 (ECU) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)*b Rear view of wire harness connector
(to ECO Mode Switch (Combination Switch Assembly) - Reconnect the D107 ECO mode switch (combination switch assembly) connector.
- Reconnect the D62 air conditioning amplifier assembly connector.
Result:
OK
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY
(Refer to COMPONENTS [10/2014 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
