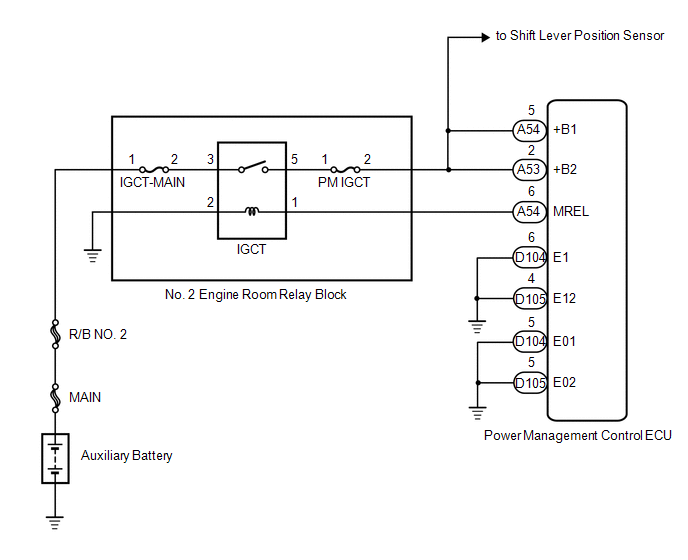

ECU Power Source Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY553295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to the wiring diagram for DTC P0A08-264 (Refer to WIRING DIAGRAM ).
