Installation [10/2015 - ]: Procedure

  1. INSTALL HYBRID VEHICLE CONTROL ECU ASSEMBLY
    1. Install the hybrid vehicle control ECU assembly with the 2 nuts in the order shown in the illustration.

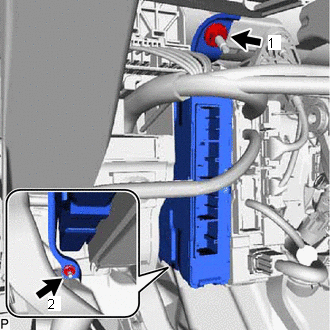

      Fig 1: Hybrid Vehicle Control ECU Assembly Tightening Sequence
      GTY548012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. Connect each connector.
  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [10/2014 - ]
