DTC B1498/98: Communication Malfunction (A/C Inverter Local) [10/2014 - 10/2015]: Procedure

  1. CHECK CAN COMMUNICATION SYSTEM
    1. Using the Techstream, check if the CAN communication system is functioning normally.

      Result

      Result Proceed to
      CAN DTCs are not output A
      CAN DTCs are output B

    Result:

    GO TO CAN COMMUNICATION SYSTEM

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] )

    Result:

    See step  2

  2. CHECK DIAGNOSTIC TROUBLE CODE
    1. Check if DTCs for the hybrid control system are output using the Techstream.

      Result

      Result Proceed to
      DTCs are not output A
      Only DTC P3108 is output A
      DTCs other than P3108 are output B

    Result:

    GO TO HYBRID CONTROL SYSTEM

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - ] )

    Result:

    See step  3

  3. CHECK HARNESS AND CONNECTOR (COMPRESSOR WITH MOTOR ASSEMBLY - BODY GROUND)
    WARNING:

    Do not disconnect the connector on the high-voltage side.

    1. Disconnect the B58 compressor with motor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B58-5 (GND) - Body ground Always Below 1 Ω

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (COMPRESSOR WITH MOTOR ASSEMBLY - IG CIRCUIT, GROUND)
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B58-6 (IG1) - B58-5 (GND) Power switch on (IG) 11 to 14 V
      B58-6 (IG1) - B58-5 (GND) Power switch off Below 1 V

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - COMPRESSOR WITH MOTOR ASSEMBLY)
    1. Disconnect the A53 power management control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B58-1 (CLK) - A53-19 (CLK) Always Below 1 Ω
      B58-2 (DIN) - A53-31 (ITE) Always Below 1 Ω
      B58-3 (DOUT) - A53-30 (ETI) Always Below 1 Ω
      B58-1 (CLK) - Body ground Always 10 kΩ or higher
      B58-2 (DIN) - Body ground Always 10 kΩ or higher
      B58-3 (DOUT) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. INSPECT ELECTRIC VEHICLE FUSE
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
    2. Remove the service plug grip (Refer to REMOVAL [10/2014 - ] ).
      WARNING:

      Do not touch the high-voltage connectors or terminals for 10 minutes after the service plug grip is removed.

      NOTE:

      After removing the service plug grip, turning the power switch on (READY) may cause a malfunction. Do not turn the power switch on (READY) with the service plug grip removed.

    3. Remove the connector cover assembly (Refer to REMOVAL [10/2014 - ] ).
      NOTE:

      Be sure to prevent foreign matter or water from entering the inverter with converter assembly.

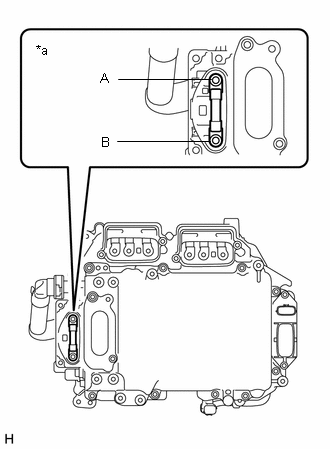

    4. Check that bolts A and B are tightened securely.
      GTY549285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Item
      (Tester Connection)
      Condition Specified Condition
      Electric vehicle fuse
      (A - B)
      Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Electric Vehicle Fuse

    Result:

    NG

    REPLACE ELECTRIC VEHICLE FUSE

    (Refer to REMOVAL [10/2014 - ] )

    Result:

    OK

    See step  7

  7. INSPECT NO. 4 ENGINE WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Disconnect the Y1 No. 4 engine wire connector (Refer to REMOVAL [10/2014 - ] ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Y1-1 (PE) - Y2-1 (ACPE) Always Below 1 Ω
      Y1-2 (PB) - Y2-2 (ACPB) Always Below 1 Ω
      Y1-1 (PE) - Body ground Always 10 kΩ or higher
      Y1-2 (PB) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPLACE NO. 4 ENGINE WIRE

    (Refer to REMOVAL [10/2014 - ] )

    Result:

    OK

    See step  8

  8. REPLACE COMPRESSOR WITH MOTOR ASSEMBLY
    1. Replace the compressor with motor assembly (Refer to REMOVAL [10/2014 - ] ).

      HINT:

      Since the compressor with motor assembly cannot be inspected while it is removed from the vehicle, replace the compressor with motor assembly with a new or known good one and check that the condition returns to normal.

    2. Check for DTCs.

      Result

      Result Proceed to
      DTC B1498/98 is not output A
      DTC B1498/98 is output B

    Result:

    END (COMPRESSOR WITH MOTOR ASSEMBLY WAS DEFECTIVE)

    Result:

    REPLACE POWER MANAGEMENT CONTROL ECU

    (Refer to REMOVAL [10/2014 - 10/2015] )
