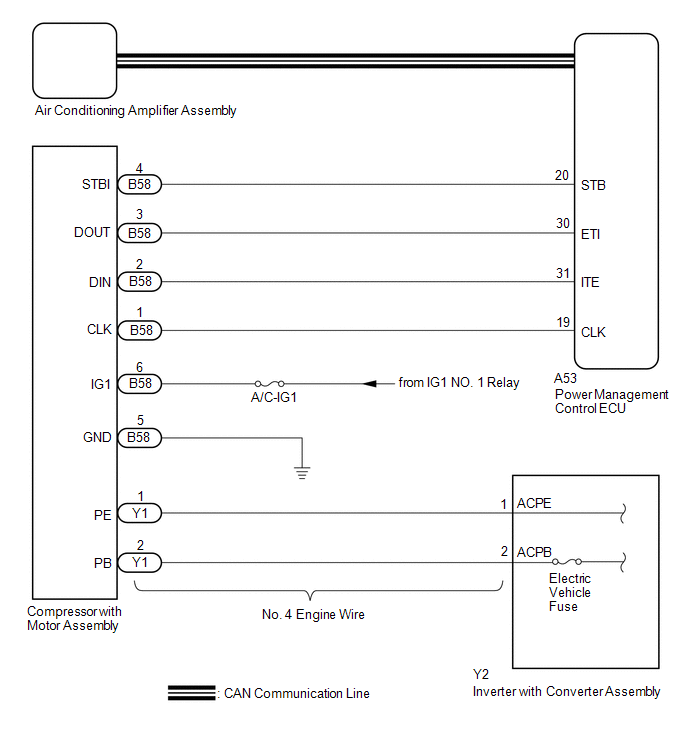

DTC B1473/73: A/C Inverter Start-up Signal System Malfunction [10/2014 - 10/2015]: Wiring Diagram

GTY583991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
