Removal [10/2014 - ]: Procedure

  1. REMOVE PROTECTOR

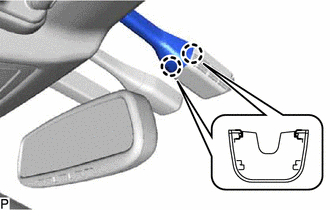

    1. Disengage the 2 claws to remove the protector.
      GTY371594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY

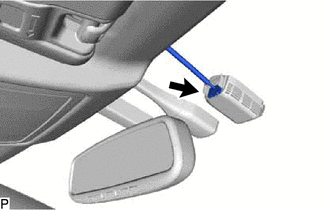

    1. Disconnect the connector.
      GTY371367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the stopper by pulling it down.
      GTY365228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Stopper

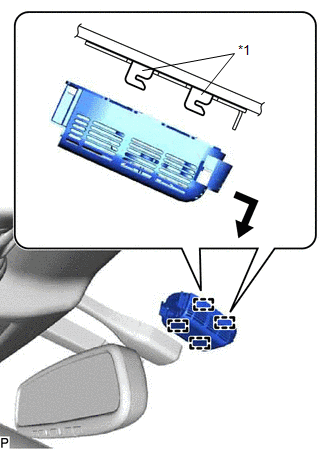

    3. Disengage the 4 guides to remove the air conditioning thermistor assembly as shown in the illustration.
      GTY372552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bracket
