Installation [10/2014 - ]: Procedure

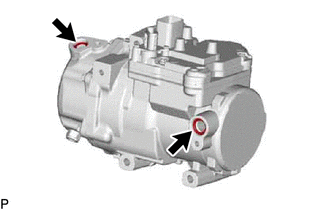

1. When replacing the electric inverter compressor with a new one, gradually discharge the refrigerant gas from the service valve, and drain the following amount of oil from the new compressor with motor assembly before installation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard

   (Oil capacity inside the new compressor with motor assembly: 120 to 135 cc (4.1 to 4.5 fl. oz.)) - (Remaining oil amount in the removed compressor with motor assembly) = (Oil amount to be removed from the new compressor)

   NOTE:

   • If a new compressor with motor assembly is installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes ineffective cooling.
   • If the amount of oil remaining in the old compressor with motor assembly is too small, check the air conditioning system for oil leaks.
   • Be sure to use ND-OIL 11 or equivalent compressor oil. If any compressor oil other than ND-OIL 11 is used, compressor with motor assembly insulation performance may decrease, resulting in a leakage of electric power.

1. Using an E8 "TORX" socket, install the 2 stud bolts.

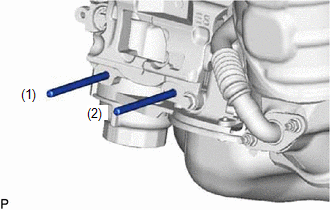

   Fig 1: Compressor With Motor Assembly Tightening Sequence (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   HINT:

   Tighten the 2 stud bolts in the order shown in the illustration.

2. Install the compressor with motor assembly with the bolt and 2 nuts.

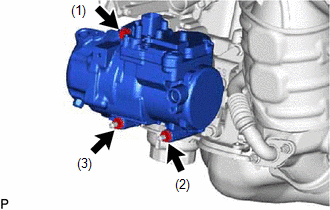

   Fig 2: Compressor With Motor Assembly Tightening Sequence (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

   HINT:

   Tighten the bolt and 2 nuts in the order shown in the illustration.

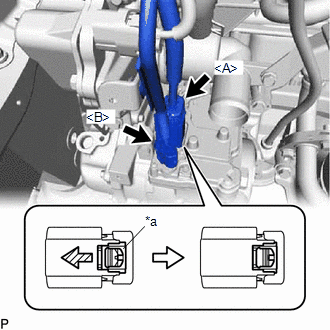

3. Connect the connector <B>.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Green-colored Lock

4. Connect the connector <A> and slide the green-colored lock as shown in the illustration to lock it securely.
   WARNING:

   Make sure to wear insulating gloves.

   NOTE:

   Make sure that the connector is connected securely.

1. Remove the vinyl tape from the suction hose sub-assembly.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with motor assembly.

   Compressor Oil

   ND-OIL 11 or equivalent

3. Install the O-ring to the suction hose sub-assembly.
   NOTE:

   • Keep the O-ring and O-ring fitting surfaces free of foreign matter.
   • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
4. Install the suction hose sub-assembly to the compressor with motor assembly with the bolt.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

1. Remove the vinyl tape from the No. 1 cooler refrigerant discharge hose.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with motor assembly.

   Compressor Oil

   ND-OIL 11 or equivalent

3. Install the O-ring to the No. 1 cooler refrigerant discharge hose.
   NOTE:

   • Keep the O-ring and O-ring fitting surfaces free of foreign matter.
   • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
4. Install the No. 1 cooler refrigerant discharge hose to the compressor with motor assembly with the bolt.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

(Refer to INSTALLATION [10/2014 - ] )

(Refer to INSTALLATION [10/2014 - ] )

See step  2

See step  3

See step  4
