Parts Location [10/2015 - ]: Illustration

WARNING: This page is about a different car, the 2018 Toyota Avalon, 2017 Toyota Avalon, and 2016 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

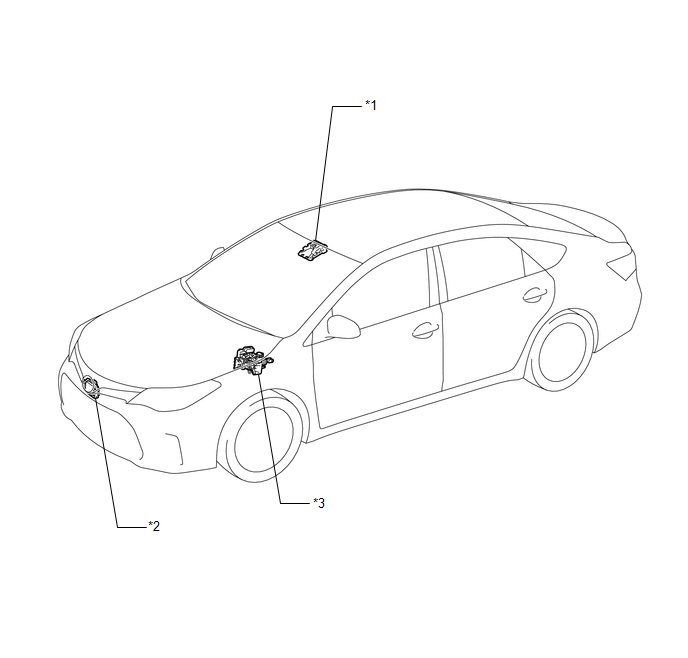

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU	-	-

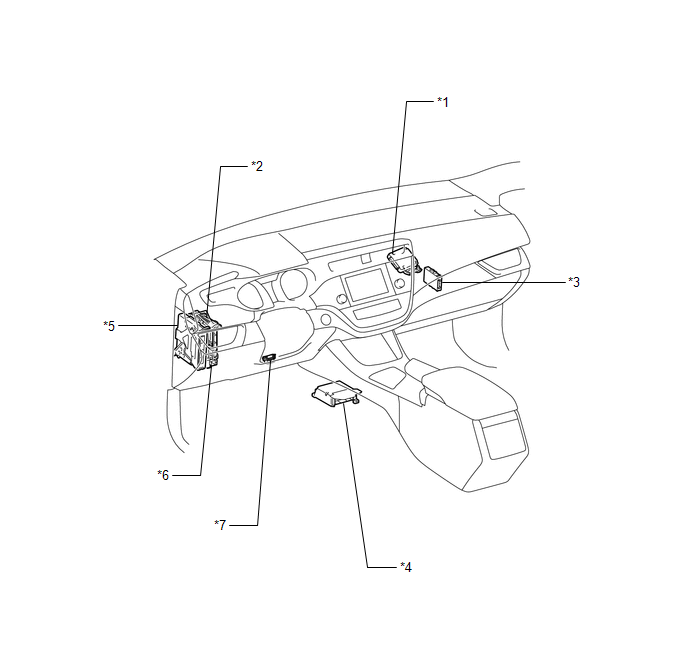

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	CENTRAL GATEWAY ECU	*4	AIRBAG ECU ASSEMBLY - YAW RATE SENSOR - G SENSOR
*5	HYBRID VEHICLE CONTROL ECU ASSEMBLY	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2
*7	DLC3	-	-
