System Diagram [10/2015 - ]

WARNING: This page is about a different car, the 2018 Toyota Avalon, 2017 Toyota Avalon, and 2016 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

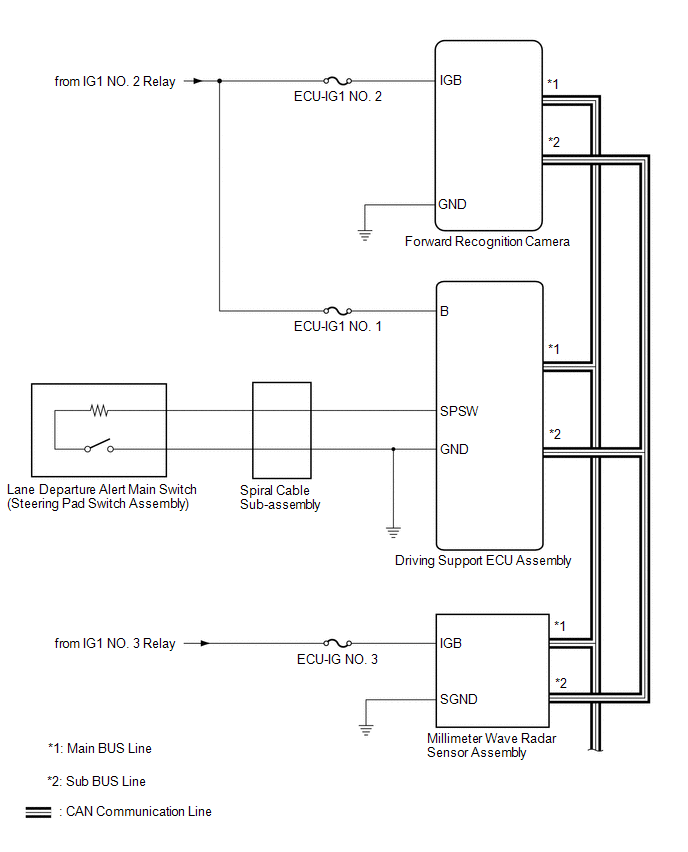

GTY610073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

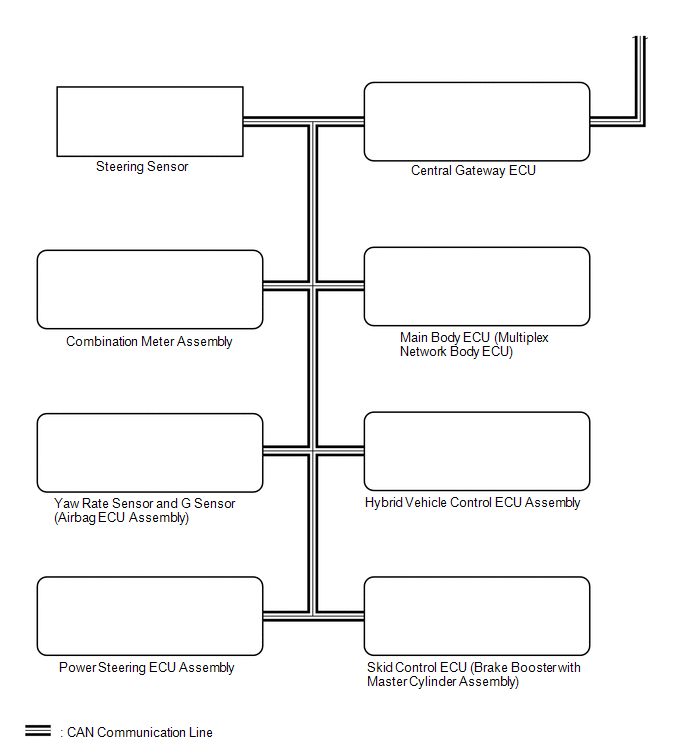

GTY596344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
