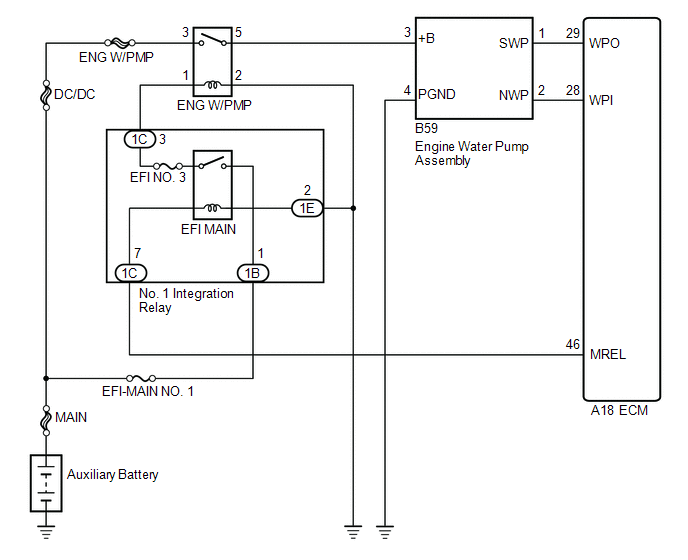

DTC P261B: Engine Coolant Pump "B" Control Malfunction; DTC P261C: Engine Coolant Pump "B" Control Circuit Low; DTC P261D: Engine Coolant Pump "B" Control Circuit High [10/2014 - ]: Wiring Diagram

GTY583155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
