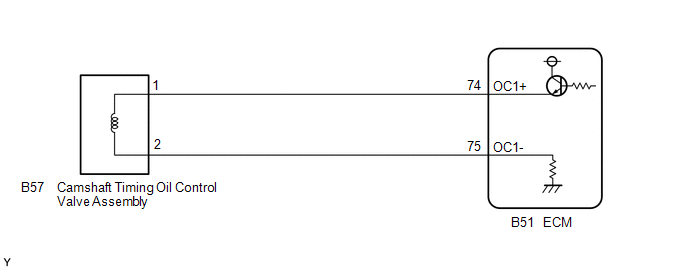

DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1) [10/2014 - ]: Wiring Diagram

GTY578165

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
