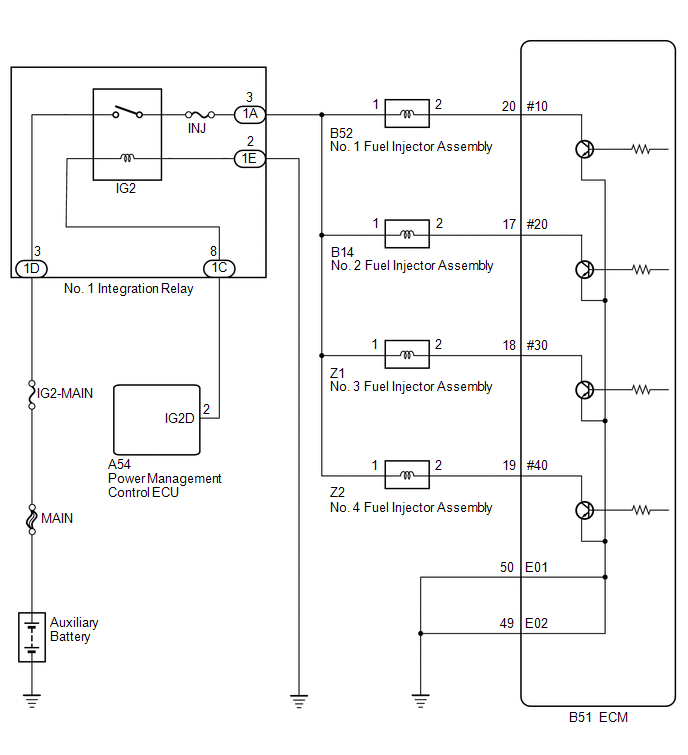

Fuel Injector Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY591903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
