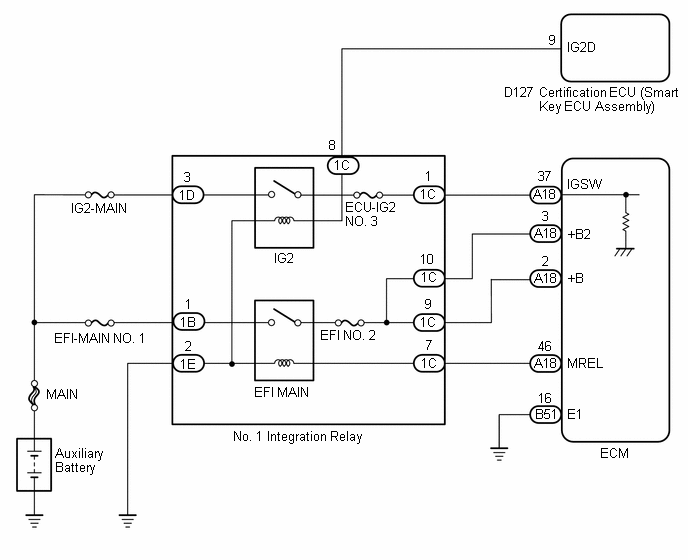

ECM Power Source Circuit [10/2015 - ]: Wiring Diagram

GTY546888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
