On-Vehicle Inspection [10/2014 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

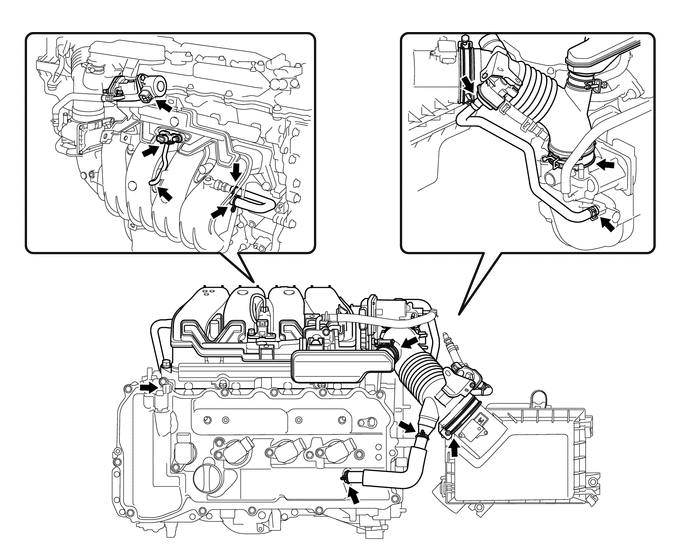

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY478706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Perform "Inspection After Repair" after repairing vacuum leaks in the intake system (Refer to INITIALIZATION [10/2014 - ] ).
