Installation [10/2014 - ]: Procedure

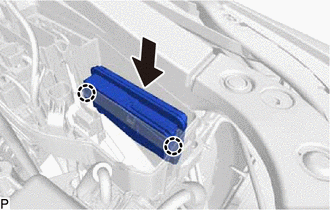

  1. INSTALL ENGINE ROOM JUNCTION BLOCK ASSEMBLY
    1. Connect the 2 connectors.
    2. Connect the 4 connectors to the engine room junction block assembly.
    3. Engage the 2 claws to install the engine room junction block assembly.
      GTY369659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 RELAY BLOCK COVER
    1. Engage the 2 claws to install the No. 1 relay block cover.
      GTY369660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
  4. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3
