Removal [10/2014 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1

  2. REMOVE LOW PITCHED HORN ASSEMBLY
    1. Disconnect the connector.

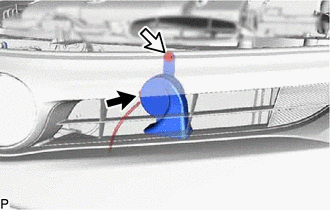

      GTY379289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and low pitched horn assembly.
  3. REMOVE HIGH PITCHED HORN ASSEMBLY
    1. Disconnect the connector.

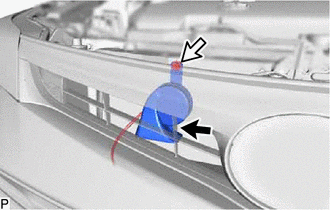

      GTY379311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and high pitched horn assembly.
