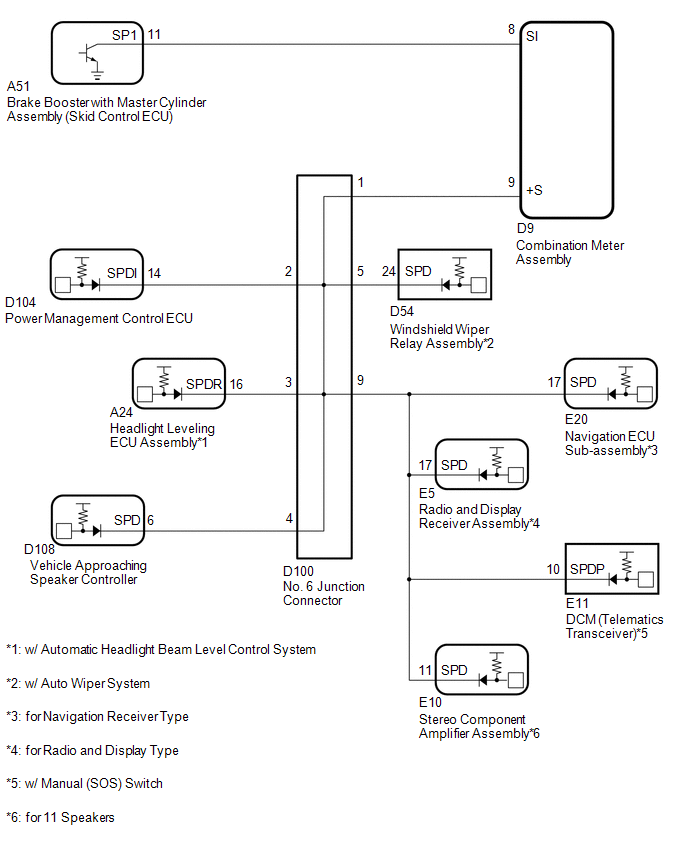

Speed Signal Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY604154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
