Parts Location [10/2015 - ]: Illustration

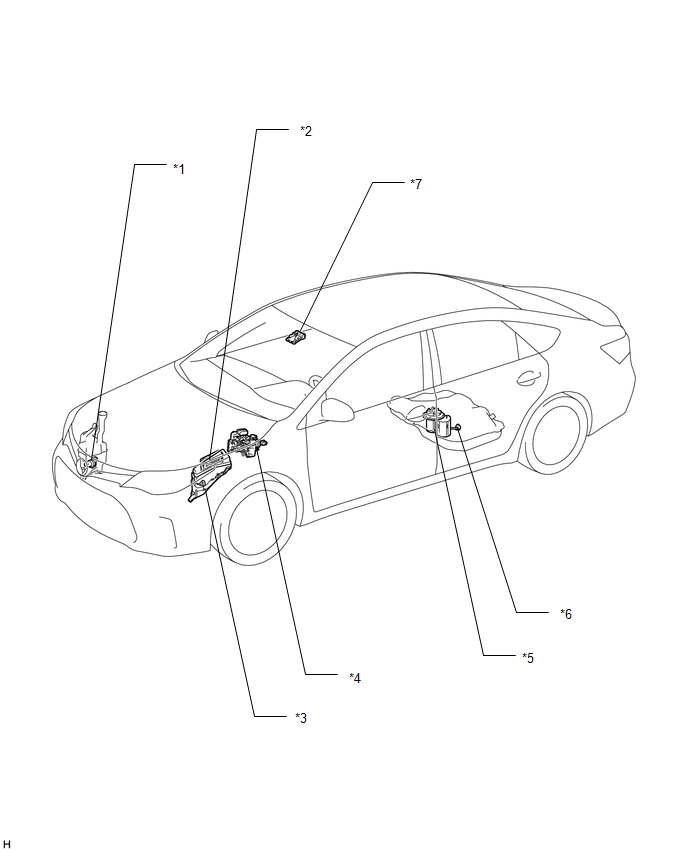

| *1 | WASHER LEVEL WARNING SWITCH (LEVEL WARNING SWITCH ASSEMBLY) | *2 | ECM |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE - TURN & HAZ FUSE - METER-IG2 FUSE |
*4 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
| *5 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *6 | FUEL SENDER GAUGE ASSEMBLY |
| *7 | FORWARD RECOGNITION CAMERA (w/ Pre-collision System) | - | - |

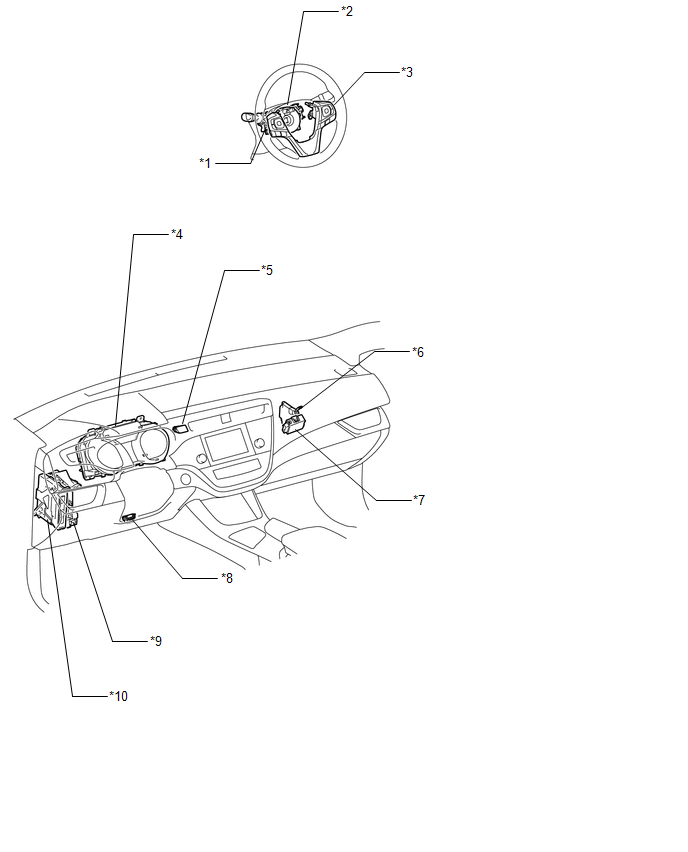

| *1 | HEADLIGHT DIMMER SWITCH | *2 | SPIRAL CABLE (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY) |
| *3 | STEERING PAD SWITCH - DISP SWITCH |
*4 | COMBINATION METER ASSEMBLY |
| *5 | HAZARD WARNING SWITCH | *6 | DRIVING SUPPORT ECU ASSEMBLY (w/ Dynamic Radar Cruise Control System) |
| *7 | WINDSHIELD WIPER RELAY ASSEMBLY (w/ Auto Wiper System) | *8 | DLC3 |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *10 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |

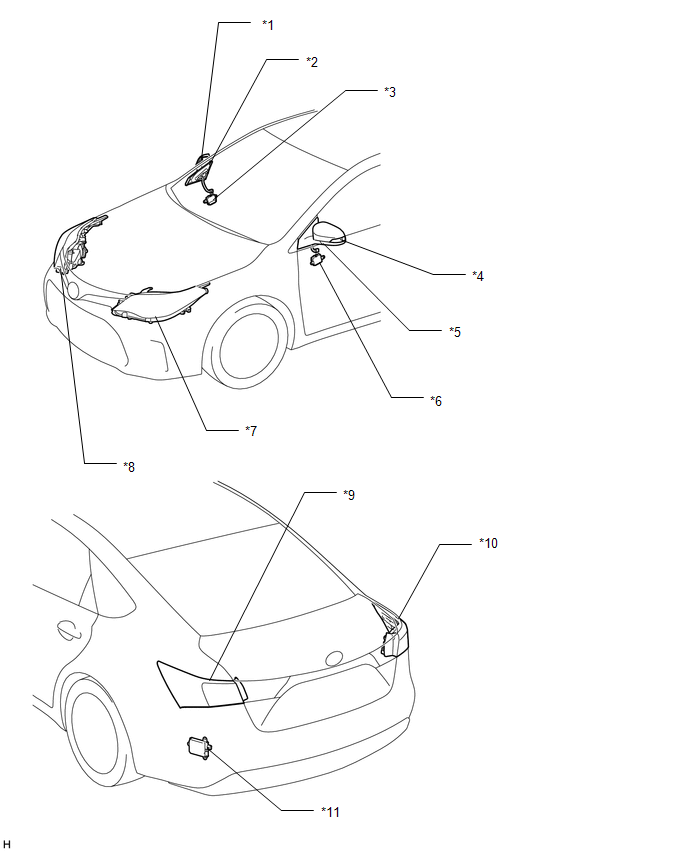

| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY (SIDE TURN SIGNAL LIGHT ASSEMBLY RH) | *2 | OUTER REAR VIEW MIRROR (OUTER REAR VIEW MIRROR ASSEMBLY RH) |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY (SIDE TURN SIGNAL LIGHT ASSEMBLY LH) |
| *5 | OUTER REAR VIEW MIRROR (OUTER REAR VIEW MIRROR ASSEMBLY LH) | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY LH |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | HEADLIGHT ASSEMBLY RH |
| *9 | REAR COMBINATION LIGHT ASSEMBLY (REAR COMBINATION LIGHT ASSEMBLY LH) | *10 | REAR COMBINATION LIGHT ASSEMBLY (REAR COMBINATION LIGHT ASSEMBLY RH) |
| *11 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) | - | - |
