Meter / Gauge / Display (Inspection) (Hybrid)
>>
Meter / Gauge System
>>
Parts Location [10/2014 - 10/2015]
>>
Illustration

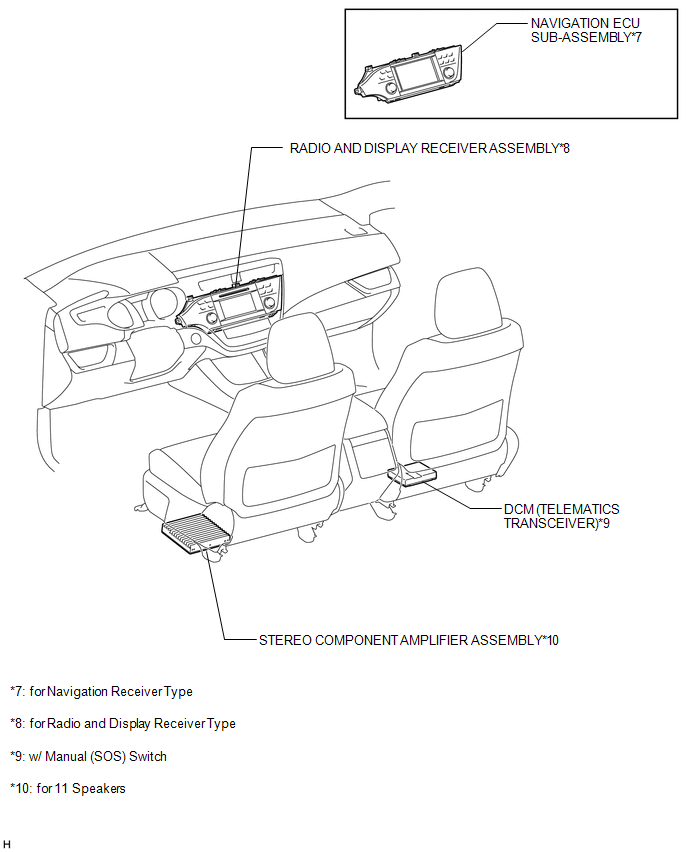

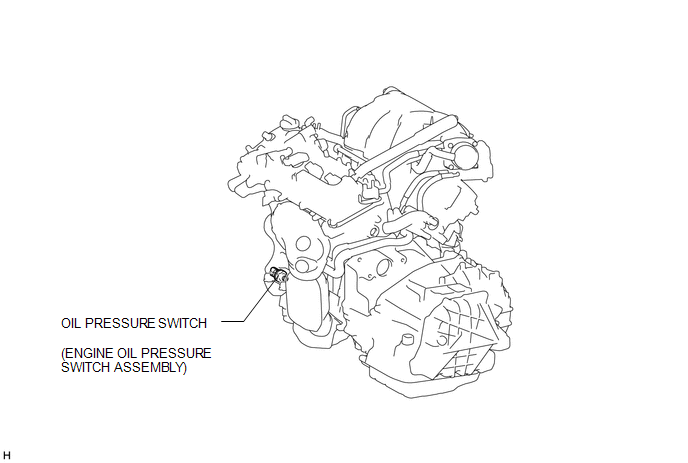

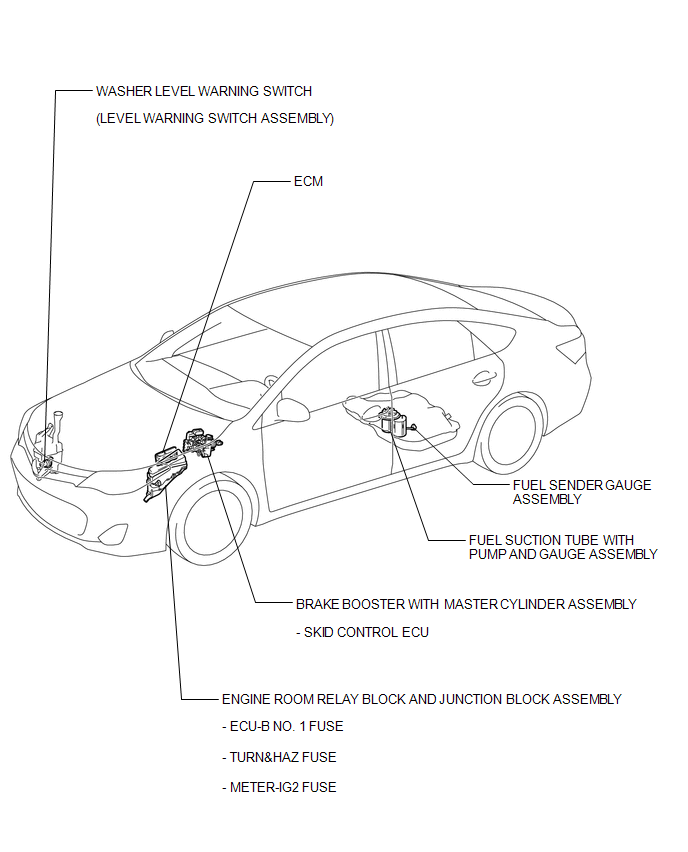

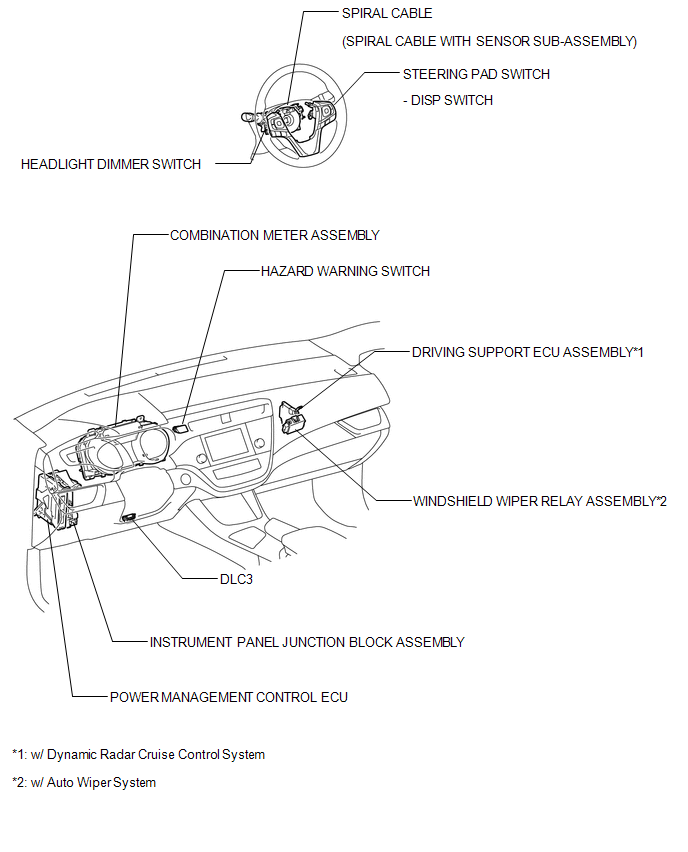

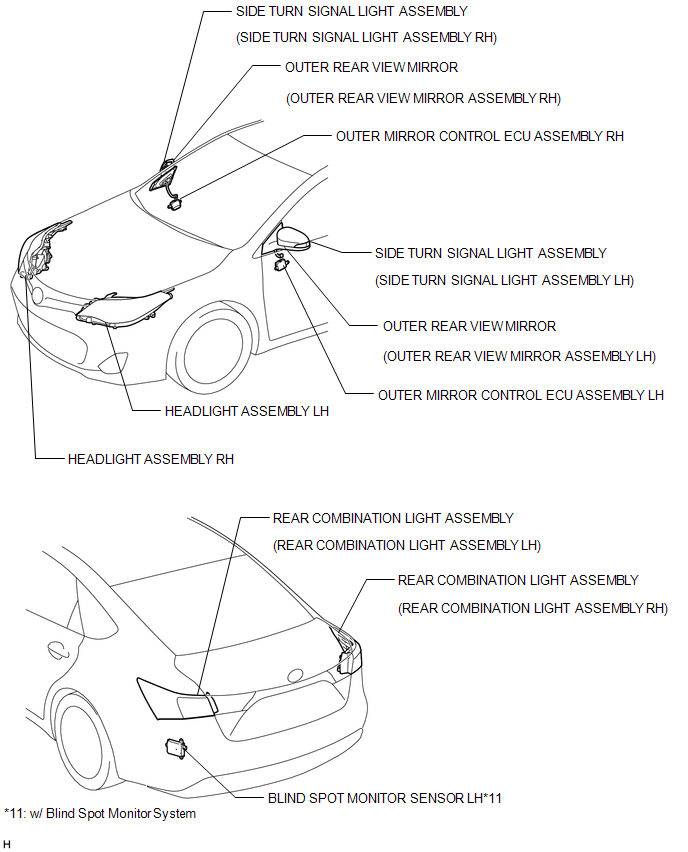

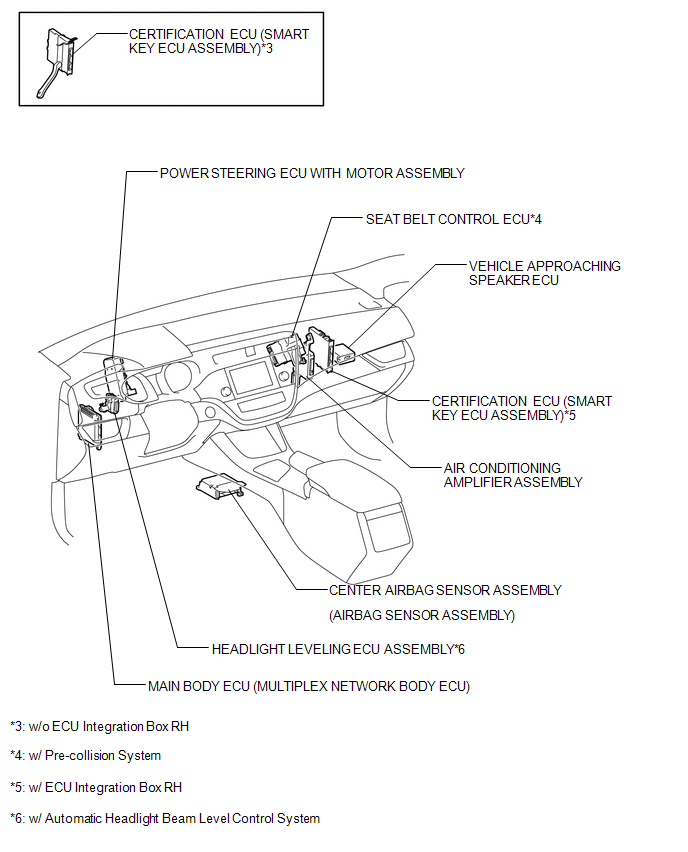

Parts Location [10/2014 - 10/2015]: Illustration
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
