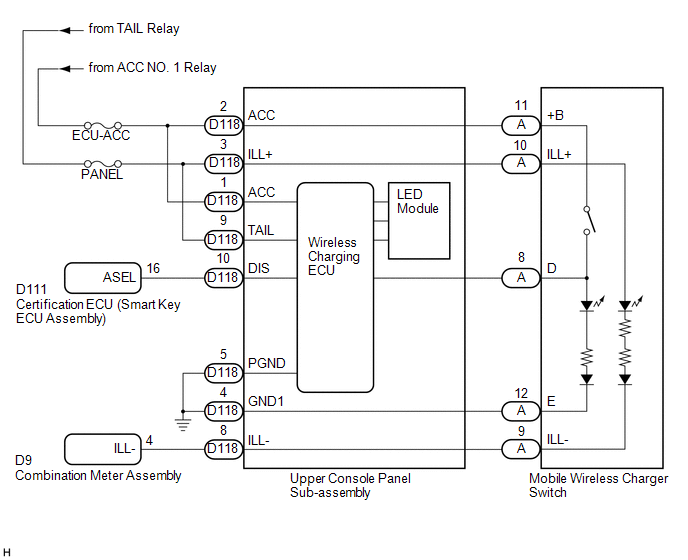

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wireless Charging System - Diagnostics & Circuit Tests (Hybrid) >> Wireless Charging System >> System Diagram [10/2014 - 10/2015] >> System Diagram [10/2014 - 10/2015]
