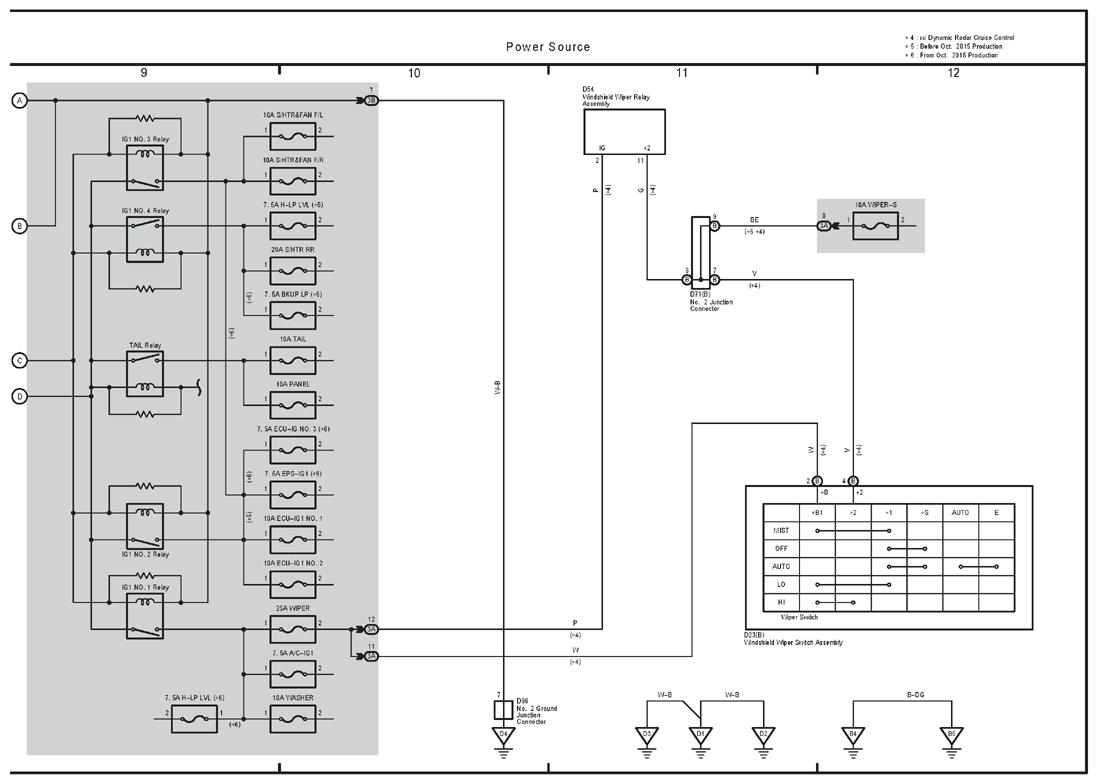

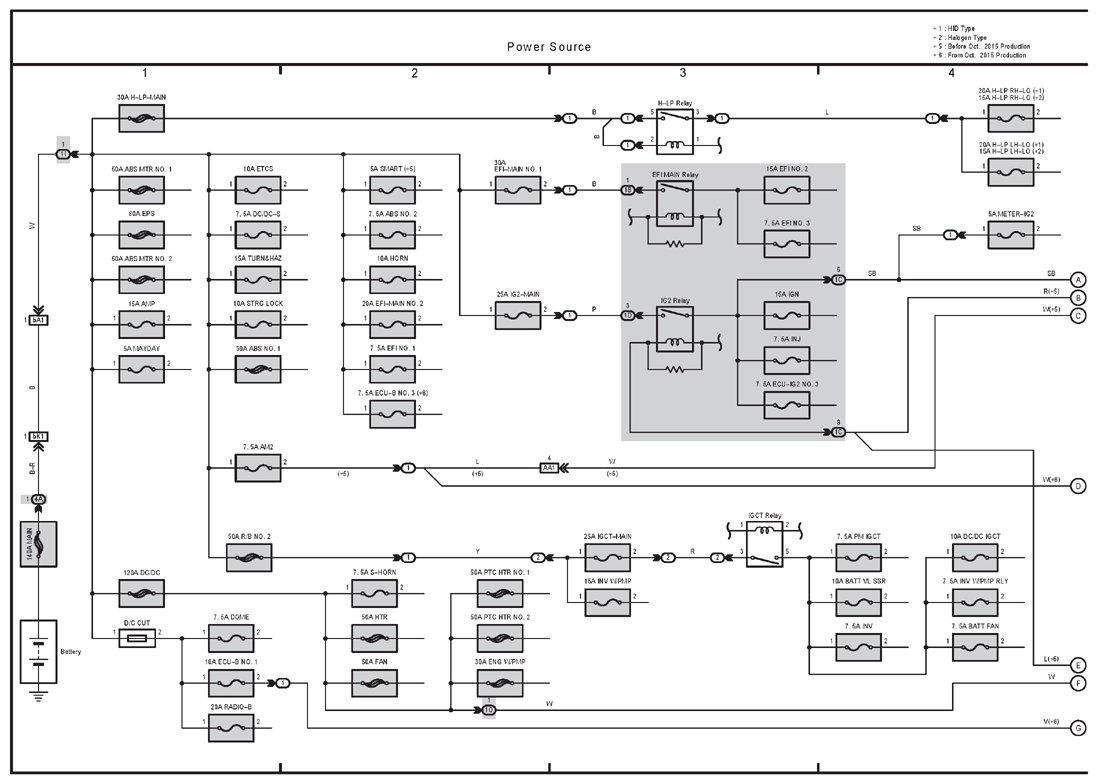

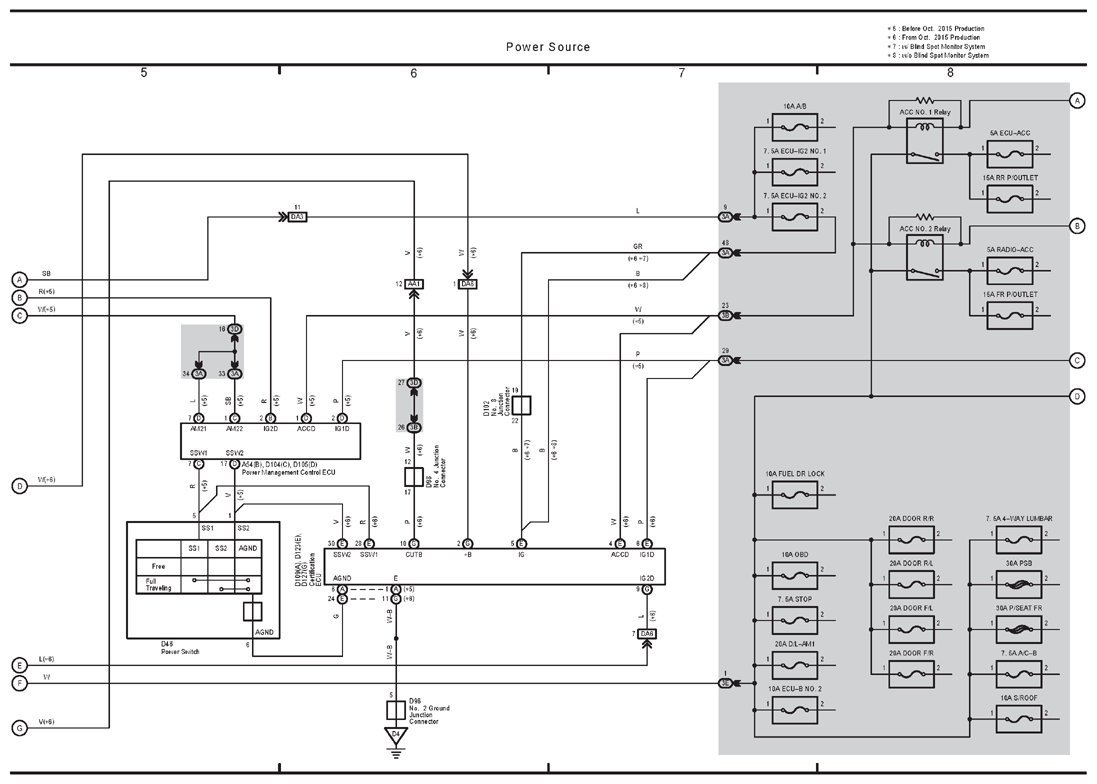

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Hybrid) >> Overall Electrical Wiring Diagram >> Power Source
